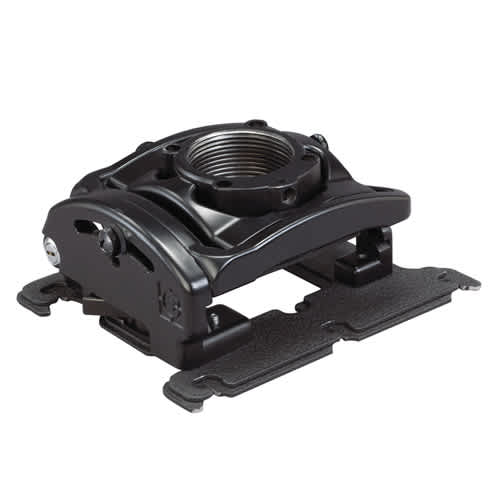

RPA Elite Custom Projector Mount with Keyed Locking (A version)-RPMA203
Custom ceiling projector mount with keyed locking, independent roll-pitch-yaw adjustability, and Centris technology
The Chief RPMA203 is a custom RPA Elite projector mount designed for ceiling installations. This unit provides a tailored solution for various projector models, ensuring a precise fit for your specific equipment. It is TAA compliant, making it suitable for projects requiring adherence to Trade Agreements Act standards. The mount features Centris Technology, which allows for effortless fingertip positioning and automatically adjusts to accommodate different projector weights. For fine-tuning, the RPMA203 offers micro-adjustable, independent roll, pitch, and yaw to ensure perfect registration. This model includes the Q-Lock Quick Release Lever, which provides a quick connect/disconnect for projector servicing and enhances security through an integrated key and lock system. Additionally, the mount facilitates integrated cable management to maintain a clean installation without the need for extra accessories. This mount is part of the RPA series, offering the same professional-grade features and reliability expected from Chief's elite line.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | A |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872108629 |
| Certifications | TAA |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPMA203 fit my specific projector?
The RPMA203 is a custom mount. It is verified against 180 device models from 7 manufacturers, including Barco PGWU-62L, Christie DHD1052-Q, and Hitachi CP-A100.
How does the locking system work for servicing?
The Q-Lock Quick Release Lever allows for rapid connection and disconnection of the projector for maintenance, while the integrated key and lock system provides enhanced security.
Can I adjust the projector position after installation?
Yes, the mount features micro-adjustable, independent roll, pitch, and yaw, which allows for precise registration even in flush mount installations.
Does this mount require additional accessories for cable management?
No, this model includes integrated cable management, allowing for a clean installation without needing to purchase separate accessories.
What is the weight capacity of this ceiling mount?
The RPMA203 is rated for a weight capacity of 50 lbs (22.7 kg).
