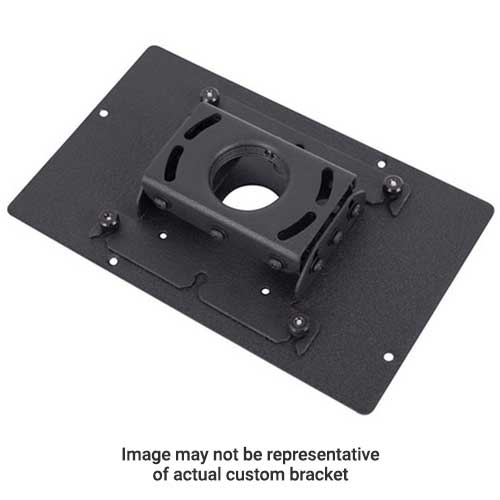

RPA Custom Projector Mounts-RPA304
Ceiling-mounted custom projector mount with 50 lbs capacity and independent roll, pitch, and yaw for precise registration
The Chief RPA304 is a widely used ceiling-mount solution designed for precise projector installation in professional environments. This custom mount facilitates rapid registration through independent roll, pitch, and yaw adjustments, which is essential for aligning the image correctly. In a flush mount configuration, the unit provides 12° of adjustment. A key feature for maintenance is the quick connect/disconnect mechanism, which allows installers to access lamps and filters on most projectors without losing preset registration or requiring a complete reconfiguration of the mount. For security, the RPA304 utilizes All-Points Security exclusive steel-into-steel locking hardware at all key connection points to protect the installation against theft. This unit supports 50 lbs (22.7 kg) of weight capacity and includes integrated cable management to maintain a clean installation without the need for additional accessories. Installation flexibility is provided by multiple options, including flush mounting to the ceiling, mounting via 0.25" threaded rods, or using a 1.5" NPT threaded extension column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.25" x 9.25" x 3.5" (235 x 235 x 88.9 mm) |
| Shipping Weight | 3.95 lbs (1.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872156217 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA304 fit my Sony projector?
This mount is verified for use with Sony models including the VPL-FHZ65W, VPL-FHZ75, VPL-FHZ80B, and VPL-FHZ80W.
How do I adjust the projector's image alignment?
The RPA304 features independent roll, pitch, and yaw adjustments. When installed in a flush mount configuration, it provides 12° of adjustability.
Can I maintain my image alignment after changing a lamp?
Yes. The quick connect/disconnect mechanism allows for lamp and filter access while maintaining your preset registration and adjustments.
What mounting options are available for ceiling installation?
The RPA304 can be installed as a flush mount to the ceiling, mounted with 0.25" threaded rods, or used with a 1.5" NPT threaded extension column.
Does this mount require additional hardware for cable management?
No, the RPA304 includes integrated cable management within the unit, so no additional accessories are required for cable routing.
