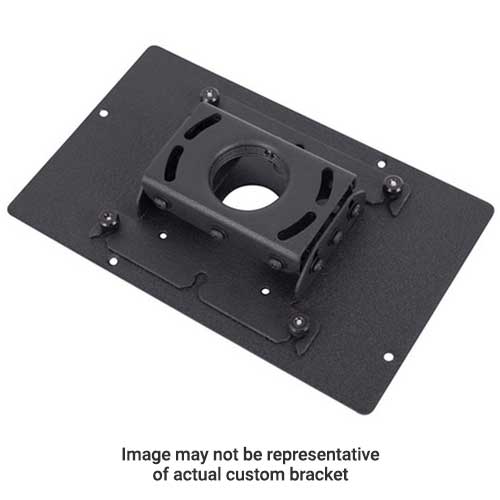

RPA Custom Ceiling Projector Mount
Custom ceiling projector mount with independent roll-pitch-yaw adjustments for precise image registration and custom interface compatibility
The RPA313 is a Chief RPA Custom Ceiling Projector Mount designed to be ordered with a custom interface bracket to fit your specific projector. This solution is engineered for quick and easy installation, providing the installer with independent roll, pitch, and yaw for precise projector image registration. For flush mount applications, the mount offers 12° of adjustment. To facilitate maintenance, the design allows for quick projector connection and disconnection, providing convenient access to the lamp and filter on most projectors while maintaining registration and preset adjustments. Security is integrated via the All-Points™ Security Systems, which uses exclusive steel-to-steel locking hardware at all connection points to protect against theft. For installation flexibility, this ceiling mount supports multiple configurations: it can be installed as a flush mount to the ceiling, using 0.25" threaded rod, or with a 1.5" NPT threaded extension column. The unit also features integrated cable management through the top of the mount, eliminating the need for additional accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 4.51 lbs (2.1 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872159164 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA313 fit my specific projector model?
This is a custom mount that ships with a custom interface bracket designed to fit your specific projector. It is verified against 18 device models from 1 manufacturer, including Panasonic PT-RW330E, PT-RW330U, PT-RW330UW, and PT-RW330W.
What installation options are available for the RPA313 ceiling mount?
The mount supports several installation methods, including a flush mount to the ceiling, the use of a 0.25" threaded rod, or a 1.5" NPT threaded extension column.
Does the RPA313 require extra accessories for cable management?
No, the RPA313 features integrated cable management through the top of the mount, so you do not need to purchase additional accessories for cable routing.
Can I service the projector lamp without losing my alignment?
Yes, the design allows for quick connection and disconnection for lamp and filter access on most projectors, maintaining your registration and preset adjustments.
Is the RPA313 TAA compliant?
Yes, the RPA313 is TAA compliant and is UL Listed.
