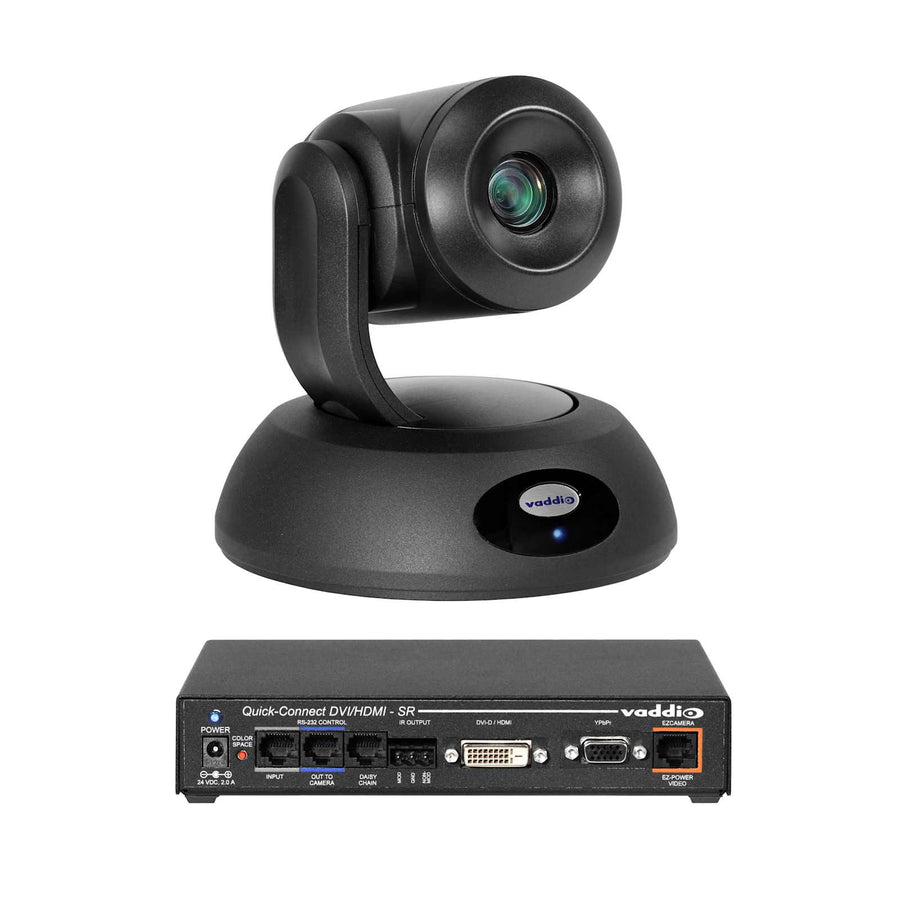

RoboSHOT 30E QDVI System
PTZ camera system with 20x optical zoom, 1080p 60 HD video, and Quick-Connect QDVI technology for simultaneous DVI and HDMI outputs

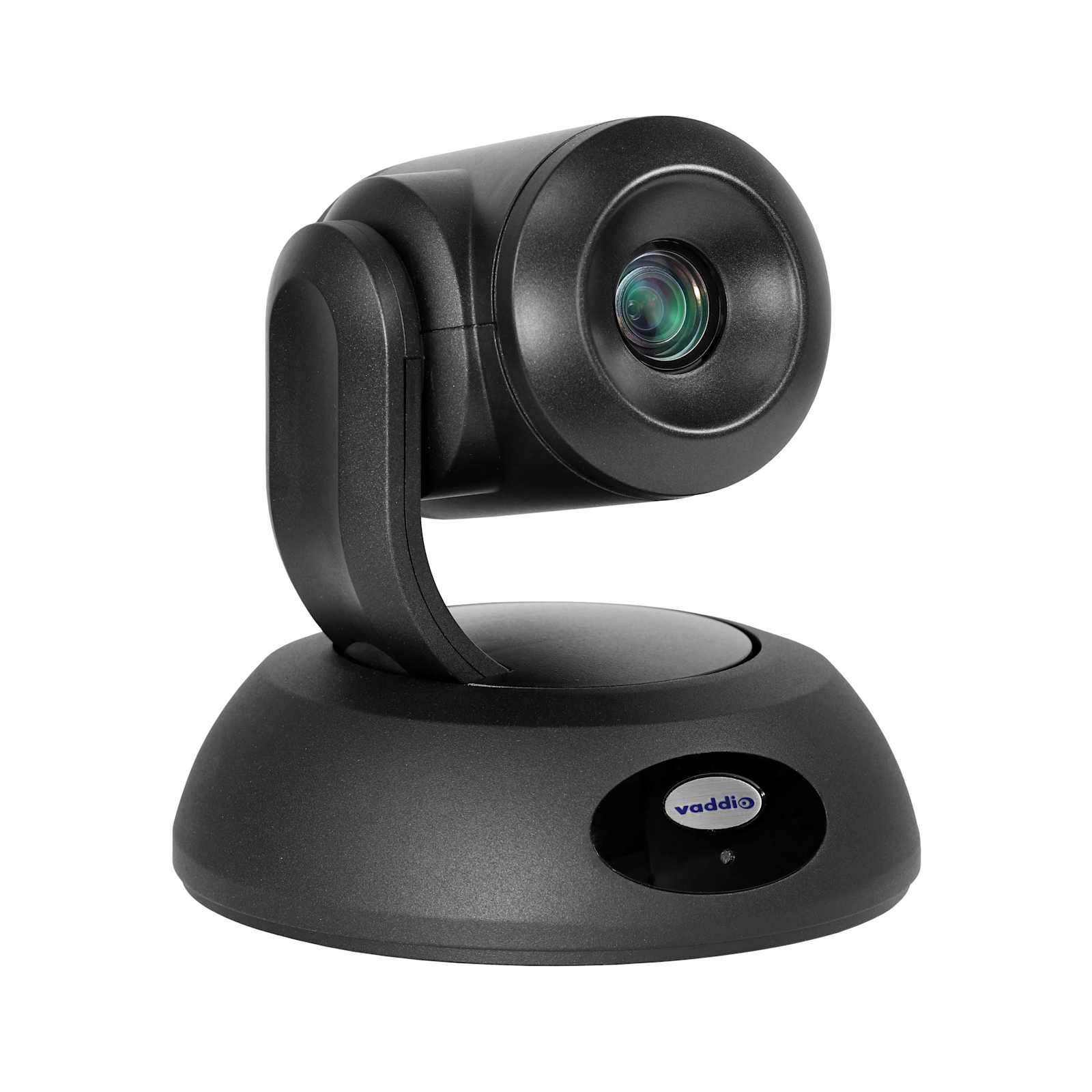

The Vaddio RoboSHOT 30E QDVI System is a professional-grade PTZ camera solution designed for large and medium-sized rooms, including lecture halls, conference centers, and houses of worship. This system utilizes RoboSHOT Elite Series technology, featuring a 1/2.5-type Exmor R CMOS sensor to provide striking 1080p/60 high-definition video quality. Even in dim lighting conditions, the integrated image signal processing (ISP) ensures enhanced wide dynamic range, contrast, and sharpness. The camera features a 70.2° wide field of view and a 30x total zoom capability, which includes 20x optical zoom and 10x IntelliZoom™ image processing to maintain resolution at greater distances. This specific QDVI system includes a Quick-Connect extender that enables simultaneous analog YPbPr and digital video (DVI-D or HDMI) outputs. Connectivity is managed over two Cat-5 cables up to 100' (30.5m) via Vaddio's EZ Power system. The system is built for smooth operation using silent BLDC direct drive motors and Tri-Sync Motion technology for natural camera movement across all three axes. For remote management, the built-in web-based user interface allows for control over an IP network. This TAA-compliant system is ideal for video conferencing and complex multi-monitor projection applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 150 in (381 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | DVI DHD YPbPrHDMI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.0A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QDVI |
| Signal Type | HD YPbPrHDMIRS 232 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503000 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
RoboSHOT 30E QUSB System
999-99190-000$7,569.00
RoboSHOT 30E AVBMP
999-99100-500$5,454.00
RoboSHOT 30E QCCU System
999-99170-000$7,664.40
24 Volt Power Supply (2.08 Amp)
451-2000-024$78.30
1-RU Rack Panel for 2 Interfaces
998-6000-003$80.10
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
IN-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
999-2225-150$1,075.50
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Thin Profile Wall Mount Long
535-2000-245$177.30
Thin Profile Wall Mount Tall
535-2000-246$177.30
Questions about this part
Will the RoboSHOT 30E QDVI System work with my existing HDMI and YPbPr equipment?
Yes. The Quick-Connect QDVI interface provides simultaneous HDMI/DVI-D digital and HD YPbPr analog outputs to support multiple monitoring and projection applications.
What is the maximum cable run distance for this system?
The system can deliver power, video, and control over two Cat-5 cables for distances up to 100' (30.5m).
How can I control the camera remotely?
You can manage the camera via a built-in web-based user interface over an IP network, through RS232, Telnet, or using the included IR Remote Commander.
What is included in the RoboSHOT 30E QDVI System package?
The package includes the RoboSHOT 30E camera (Black), a thin profile wall mount with hardware, a Vaddio IR Remote Commander, a Quick-Connect DVI/HDMI SR Interface, a 24VDC power supply with AC cord, and rubber feet for the QDVI unit.
Does this system require specific mounting hardware?
The system includes a thin profile wall mount. For different installation environments, accessories such as the 535-2000-296 Offset Drop-Down Mount or various DomeVIEW enclosures are available.
