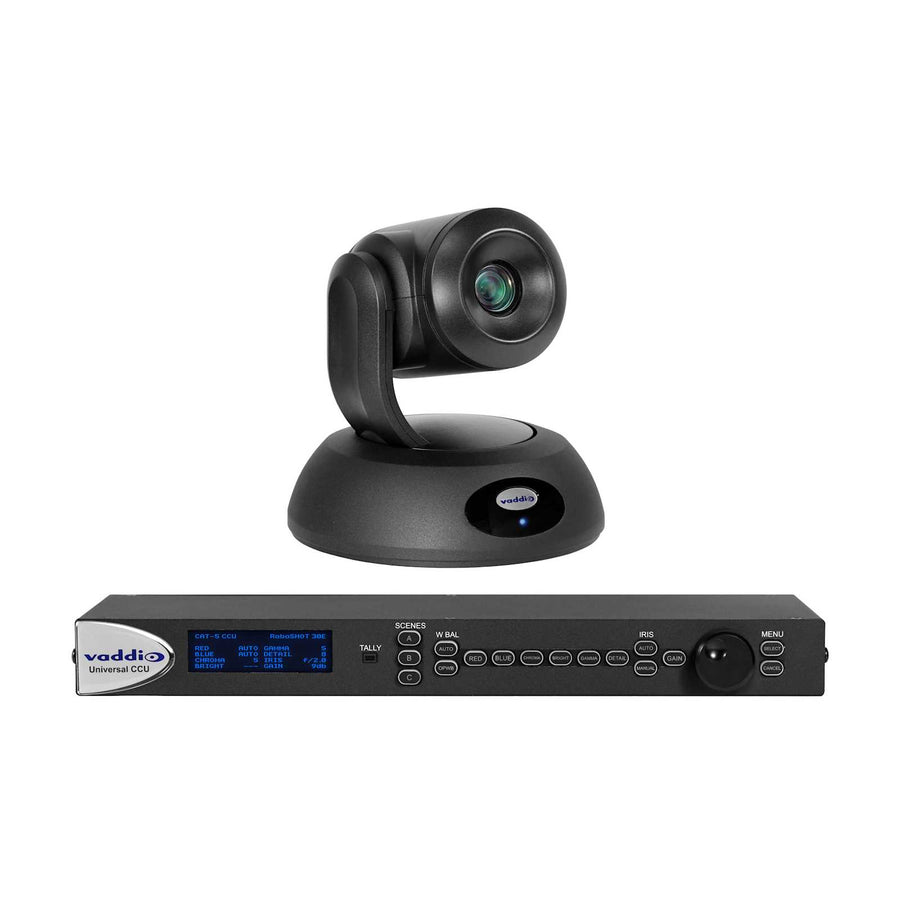

RoboSHOT 30E QCCU System
PTZ camera system with 20x optical zoom, 1080p 60 HD video, and Quick-Connect technology for long-distance cabling
The RoboSHOT 30E QCCU System provides high-quality 1080p 60 HD video, power, and control through three Cat. 5 cables reaching distances of up to 500 feet (1,270 cm). This system is engineered for large and medium rooms, such as lecture halls, conference centers, and houses of worship. Featuring an 1/2.5-type Exmor R CMOS sensor, the camera delivers sharp image quality and enhanced wide dynamic range to manage uneven lighting conditions. The 30x total zoom combines a 20x optical zoom with 10x IntelliZoom™ image processing to maintain high resolution even when zooming in on distant subjects. For smooth movement, Tri-Sync Motion technology ensures all three axes move simultaneously for natural camera motion. Integrated Quick-Connect technology allows installers to adjust white balance, iris, gain, and other critical image settings via tactile controls on the CCU. The system supports various control methods, including a built-in web UI, IR remote, and RS232 or Telnet via 3rd party control. Output options include HDMI, 3G SDI, and HD YPbPr for maximum integration flexibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 500 in (1,270 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 19" x 19" x 25" (482.6 x 482.6 x 635 mm) |
| Shipping Weight | 22 lbs (10 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 37
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTouch ScreenWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | 3G SDIHD YPbPrHDMI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.78A36VDC |
| Power Type | CCU Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QCCU |
| Signal Type | 3G SDIHD YPbPrHDMIRS 232 |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503093 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Thin Profile Wall Mount Tall
535-2000-246$177.30
RoboSHOT 30E QUSB System
999-99190-000$7,569.00
Thin Profile Wall Mount Long
535-2000-245$177.30
RoboSHOT 30E QDVI System
999-99160-000$7,202.70
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70

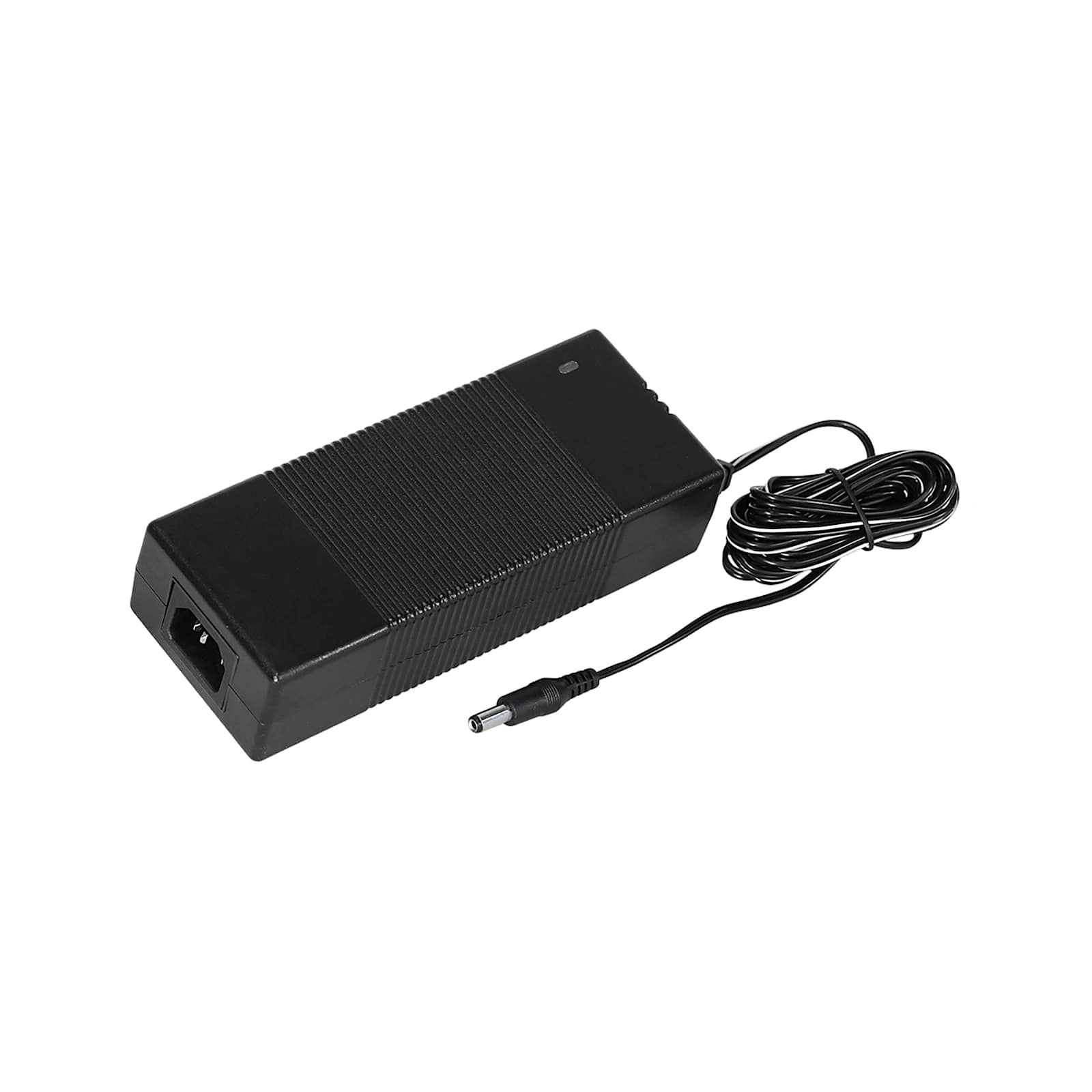

36 Volt Power Supply (2.78 Amp)
802-2620$153.90
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Questions about this part
How far can I run the cabling for the RoboSHOT 30E QCCU System?
The Quick-Connect technology allows you to deliver power, video, and control over three Cat. 5 cables for distances up to 500 feet (1,270 cm).
What video outputs are available on the RoboSHOT 30E?
The system provides flexible integration options with HDMI, 3G SDI, and analog component HD YPbPr output ports.
Can I control the camera remotely via a network?
Yes, the camera features a built-in web-based user interface for remote control over an IP network, and it supports RS232 and Telnet for 3rd party control.
What is the total zoom capability of this camera?
The camera features a 20x optical zoom combined with 10x IntelliZoom™ technology, providing a total of 30x magnification.
What accessories are required for different mounting scenarios?
Depending on your installation, you can add the Thin Profile Wall Mount, a Suspended Ceiling Mount, or DomeVIEW HD enclosures.
