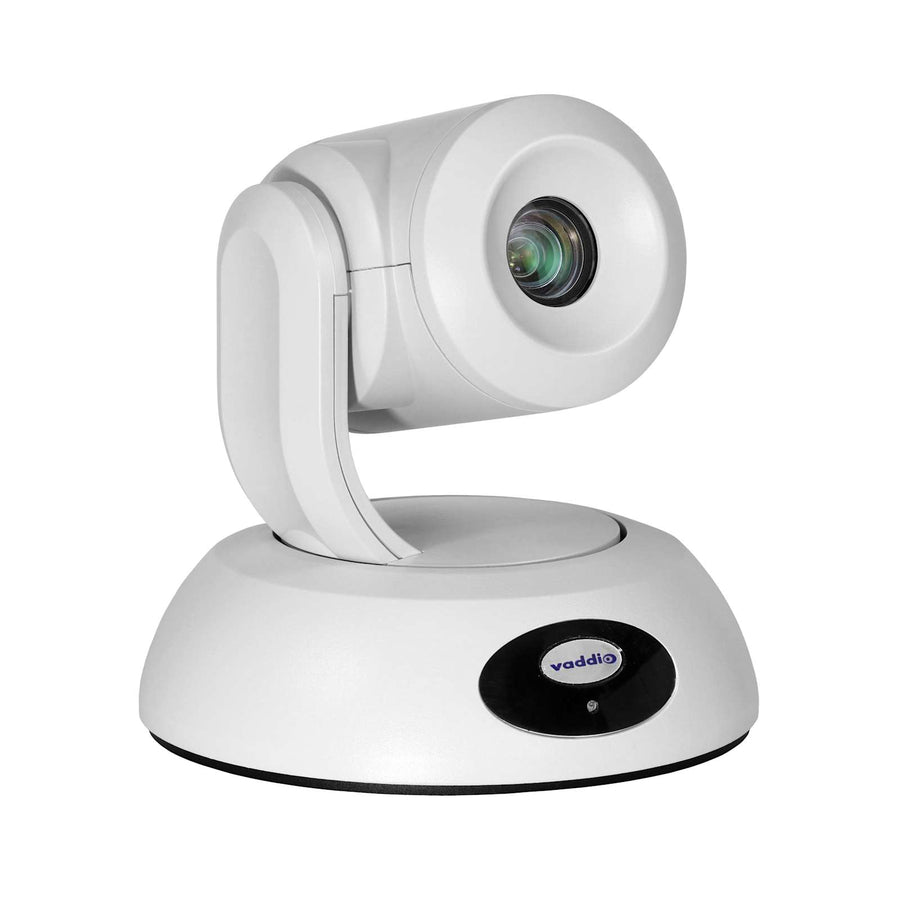

RoboSHOT 30E HDMI
White PTZ camera featuring 20x optical zoom, 10x IntelliZoom, and simultaneous HDMI/IP H.264 streaming
The RoboSHOT 30E HDMI (999-99430-000W) is a professional-grade PTZ camera engineered for high-stakes environments like lecture halls, houses of worship, and large meeting rooms. Utilizing a 1/2.5-type Exmor R CMOS sensor with 8.51 megapixels, this camera delivers sharp 1080p 60 video, even when operating in dim lighting with a minimum illumination of 1 Lux (F1.6). The 30x zoom capability combines 20x optical zoom with 10x IntelliZoom technology, allowing users to reach distant subjects without the resolution loss common in standard digital cropping. This model is designed for versatile deployment with simultaneous HDMI and IP (H.264) streaming outputs. It features Vaddio’s Tri-Sync Motion technology, which coordinates all three axes of movement for smooth, natural camera transitions. For remote management, the camera offers a built-in web-based user interface and supports control via RS232, Telnet, or an IR remote. It is TAA compliant and provides 16 custom preset positions for quick scene transitions. The package is shipped with a PoE+ Midspan Power Injector and a thin profile white wall mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503727 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
RoboSHOT 12E HDMI
999-99400-000$3,150.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00
Thin Profile Wall Mount Tall
535-2000-246$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
The RoboSHOT 30E HDMI provides simultaneous HDMI and IP H.264 streaming (RTSP or RTMP) for live events.
The RoboSHOT 30E HDMI provides simultaneous HDMI and IP H.264 streaming (RTSP or RTMP) for live events on platforms like YouTube or Facebook.
What is included in the RoboSHOT 30E HDMI package?
The package includes the camera, a PoE+ Midspan Power Injector, a thin profile white wall mount with hardware, a quick-start card, and a Vaddio IR Remote Commander.
Can I control the RoboSHOT 30E HDMI remotely over a network?
Yes, you can manage the camera via a built-in web-based user interface or through RS232 and Telnet over your IP network.
How much zoom does this camera provide?
It features a 20x optical zoom, which is augmented by an additional 10x of IntelliZoom technology to maintain high resolution at long distances.
What mounting options are available for this camera?
While it includes a thin profile wall mount, you can also use a Vaddio QuickCAT Universal Suspended Ceiling Mount or a DomeVIEW HD Enclosure.
