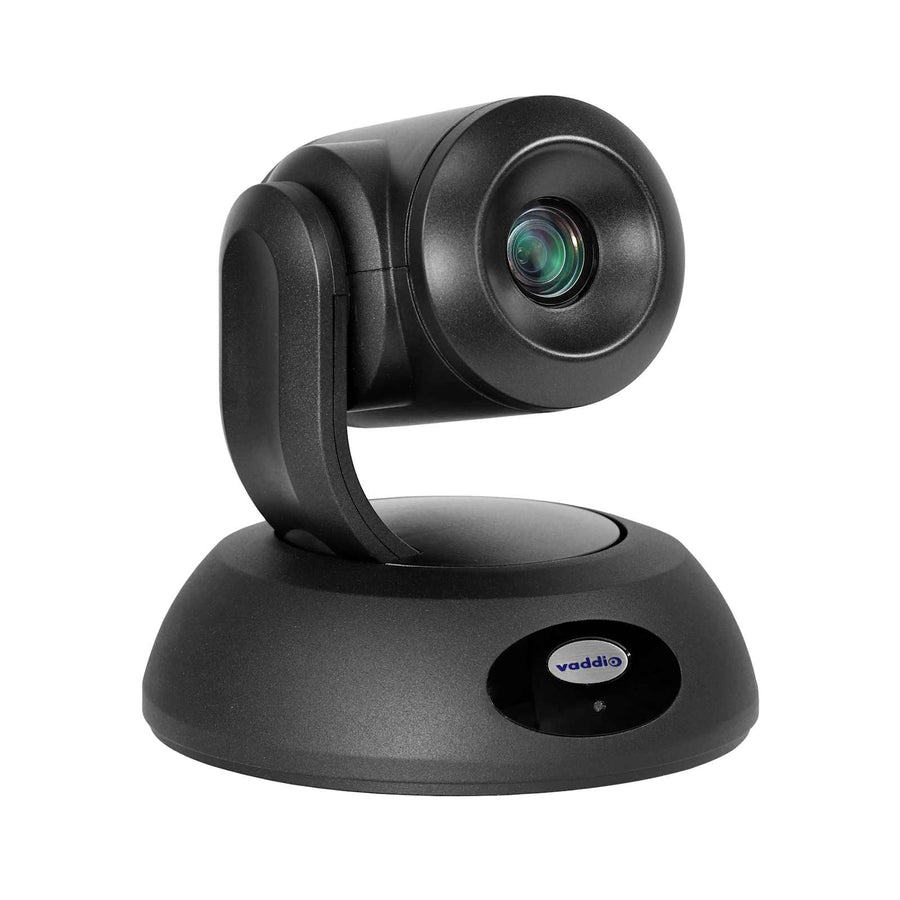

RoboSHOT 12E HDMI
12x zoom PTZ camera with 1/2.5-type Exmor R CMOS sensor, 1080p/60 resolution, and simultaneous HDMI and IP H.264 streaming
The Vaddio RoboSHOT 12E HDMI is a professional PTZ camera designed for medium to small spaces like classrooms, training rooms, and conference rooms. It features a 1/2.5-type Exmor R CMOS sensor that enables high-definition 1080p/60 video with improved light-gathering capabilities and enhanced wide dynamic range. This helps maintain detail in environments with uneven lighting. The camera provides simultaneous HDMI and IP (H.264) streaming, allowing for live broadcasting to platforms like YouTube or Facebook via RTSP or RTMP formats. Movement is handled by silent BLDC direct drive motors using Vaddio Tri-Sync Motion technology for ultra-smooth, natural motion across all three axes. Control is versatile, offering a built-in web-based user interface for remote management over IP, as well as RS232, Telnet, IR remote, and joystick options. This TAA-compliant unit includes a PoE+ midspan power injector and a thin profile wall mount in black. For large-scale deployments, the free Vaddio Deployment Tool helps manage hundreds of units across various rooms.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503536 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount Long
535-2000-245$177.30
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00
Thin Profile Wall Mount Tall
535-2000-246$177.30
RoboSHOT 30E HDMI
999-99430-000$3,150.00
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Questions about this part
Will the RoboSHOT 12E HDMI fit my specific room setup?
This camera is recommended for small to medium spaces, such as classrooms or training rooms, providing a 70.2° wide field of view.
What video outputs does this camera support?
The 999-99400-000 provides simultaneous HDMI and IP streaming (H.264) outputs for hybrid local and network-based production.
How do I control the camera remotely?
You can manage the camera via a built-in web browser interface over the IP network, or use RS232, Telnet, an IR remote, or a joystick.
What is required for power and installation?
The package includes a PoE+ midspan power injector and a black thin profile wall mount with all necessary hardware.
Is this camera TAA compliant?
Yes, the RoboSHOT 12E HDMI is TAA compliant and holds CE and FCC certifications.
