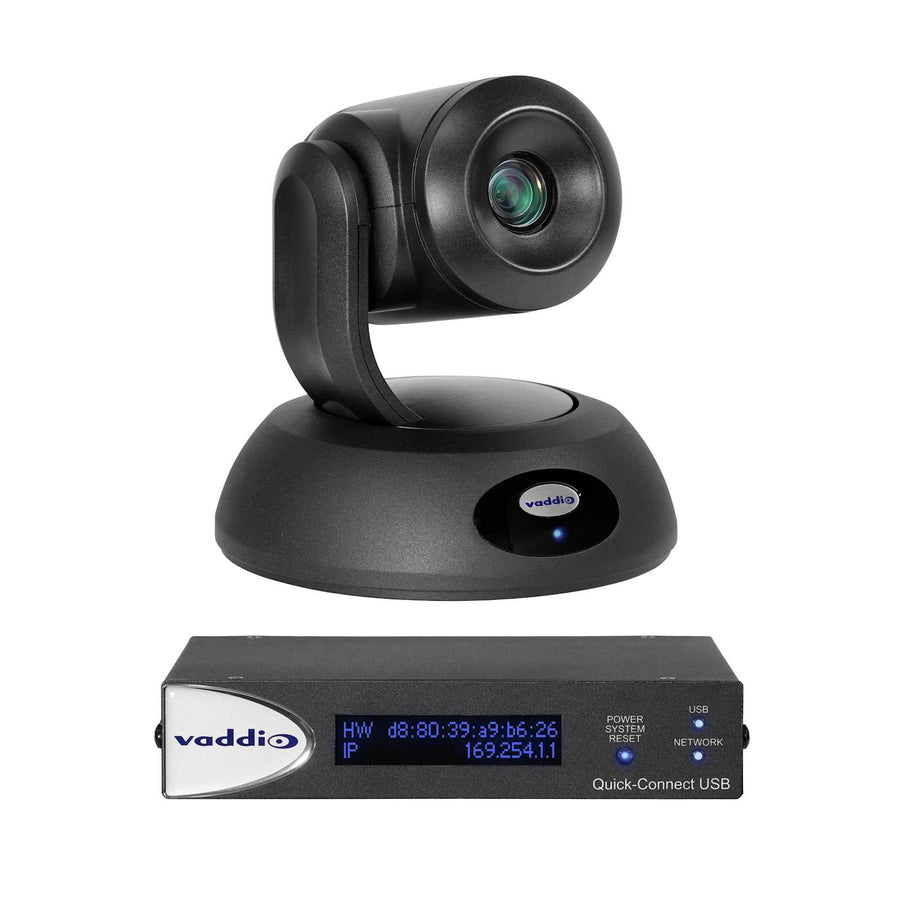

RoboSHOT 12E QUSB System
RoboSHOT 12E QUSB System PTZ camera with 12x optical zoom, 1/2.5-type Exmor R CMOS sensor, and Quick-Connect USB interface
The Vaddio RoboSHOT 12E QUSB System is a professional PTZ camera designed to deliver high-definition video for medium to small rooms, including conference rooms, training rooms, and classrooms. This system utilizes the Quick-Connect™ USB Interface to provide video, power, and control over two Cat.5 cables at distances up to 100' (30.5m). Featuring a 1/2.5-type Exmor R CMOS sensor, the RoboSHOT 12E provides sharp 1080p 60 video even in low-light conditions, thanks to enhanced wide dynamic range and advanced image signal processing. The camera offers 12x optical zoom and a field of view ranging from 70.2° at the wide end to 6.8° at the tele end. It incorporates Vaddio's Tri-Sync Motion technology, allowing the pan, tilt, and zoom axes to move simultaneously for natural, smooth camera movement. Control is versatile, supporting an IR remote, RS232, Telnet, or a built-in web-based user interface for remote network management. Output options through the QUSB interface include USB 2.0 (UVC) for streaming, as well as HDMI and HD analog component (YPbPr) video. This TAA compliant system is built with silent BLDC direct drive motors for professional-grade operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 150 in (381 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HD YPbPrHDMIUSB 2.0 |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.0A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIUSB 2.0 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077502805 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
24 Volt Power Supply (2.08 Amp)
451-2000-024$78.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10

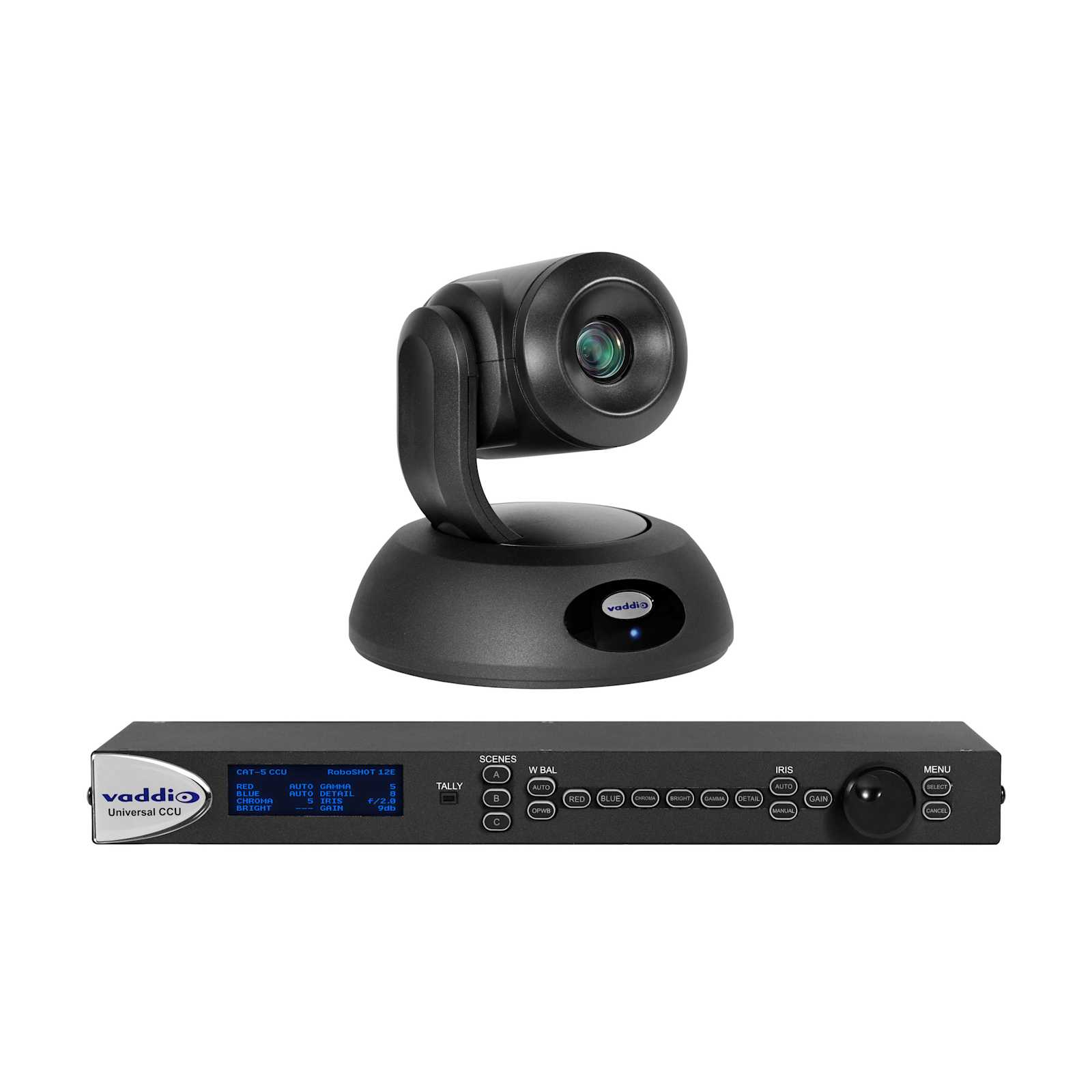

RoboSHOT 12E QCCU System
999-99070-000$6,809.40
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30

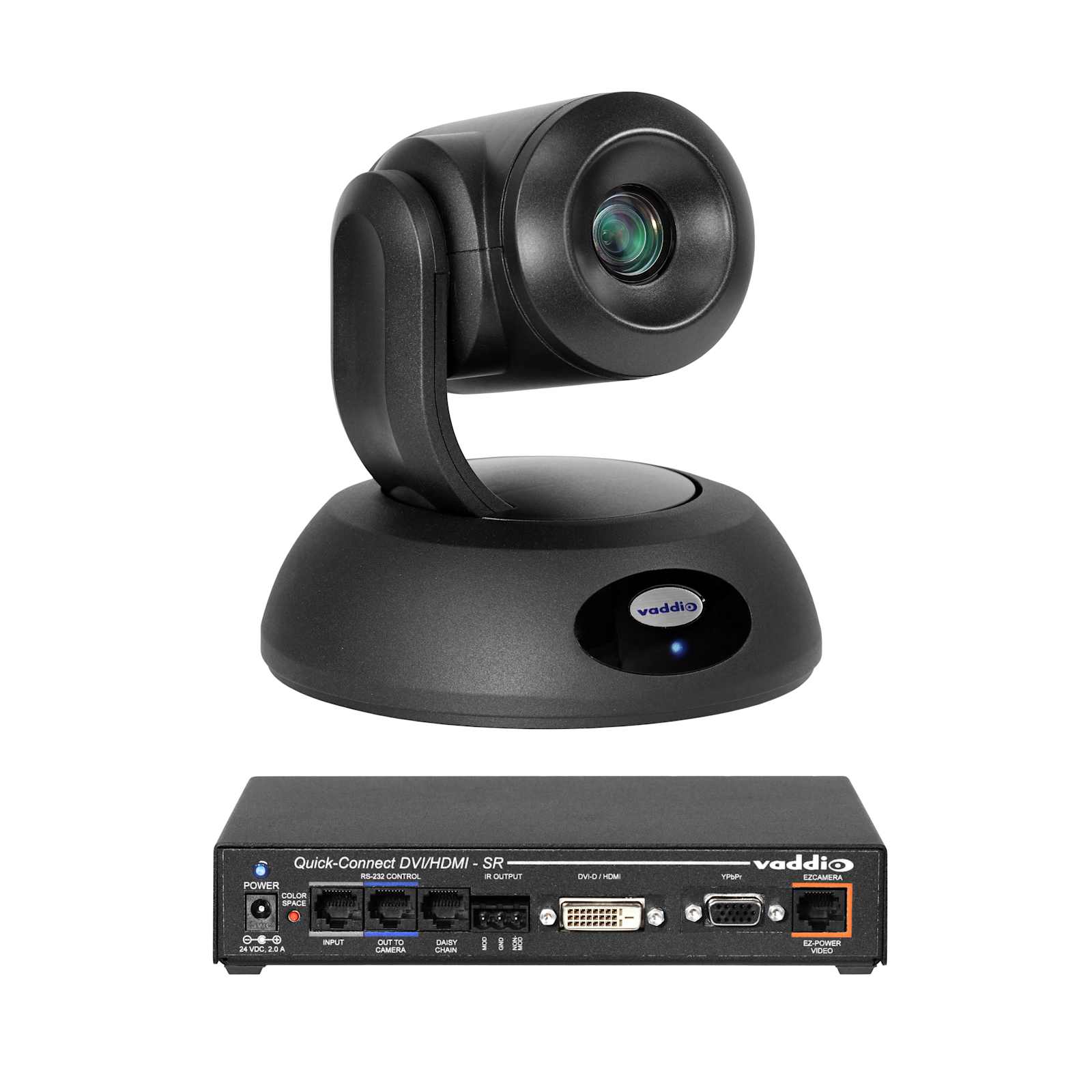

RoboSHOT 12E QDVI System
999-99060-000$6,404.40
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Questions about this part
What is the maximum distance for the cable connection?
The Quick-Connect USB Interface allows you to run power, video, and control over two Cat-5 cables for distances up to 100' (30.5m).
Will this camera work for a standard USB web meeting setup?
Yes, the QUSB system supports USB 2.0 (UVC) streaming, making it compatible with UVC-compliant computers for plug-and-play video conferencing.
What are the available video outputs for the RoboSHOT 12E?
The system supports HDMI, HD YPbTr (component), and USB 2.0 outputs, providing flexibility for various display and streaming setups.
How is the camera movement controlled?
You can manage the camera using an IR remote, RS232, Telnet, or through the built-in web-based user interface via the IP network.
Is the RoboSHOT 12E TAA compliant?
Yes, this RoboSHOT 12E QUSB System is TAA compliant and carries FCC and CE certifications.
