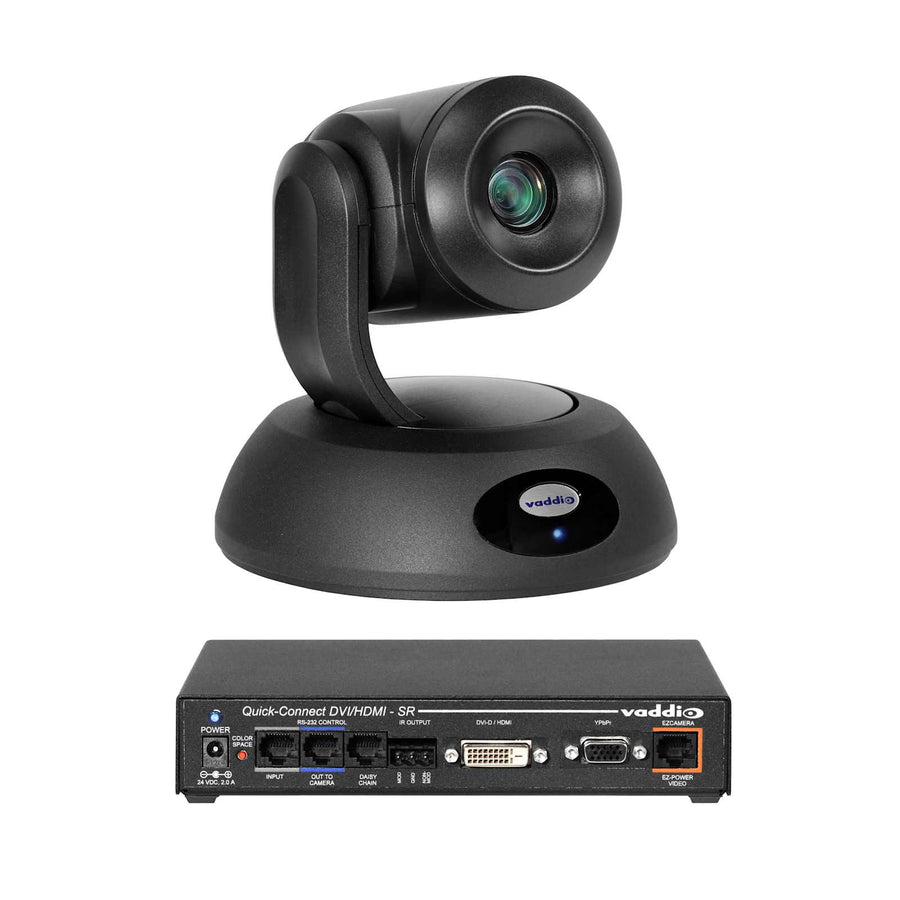

RoboSHOT 12E QDVI System
12x optical zoom PTZ camera system with Quick-Connect DVI/HDMI/YPbTr outputs and Cat-5 extension capability
The RoboSHOT 12E QDVI System is a professional A/V presentation camera designed to deliver high-quality 1080p 60 video. It utilizes a 1/2.5-type Exmor R CMOS sensor with 8.51 Megapixels to provide striking image quality, including enhanced wide dynamic range to manage uneven lighting environments. This camera is optimized for small to medium rooms, such as classrooms, training rooms, and conference spaces. It features a 12x optical zoom and a field of view ranging from 70.2° at the wide end to 6.8° at the tele end. Integrated Tri-Synchronous Motion technology allows for smooth, natural movement across all three axes using silent BLDC direct drive motors. This specific QDVI system utilizes two Cat-5 cables to provide power, video, and control over distances up to 100 feet (30.5 m). Output options include simultaneous HDMI, DVI-D, and HD YPbPr via the Quick-Connect interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 100 in (254 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | DVI DHD YPbPrHDMI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.0A36VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QDVI |
| Signal Type | HD YPbPrHDMIRS 232 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077502676 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
What is the maximum cable distance for this system?
The system uses two Cat-5 cables to extend power, video, and control for up to 100 ft (30.5 m).
Which video outputs are supported by the QDVI system?
The Quick-Connect interface provides simultaneous HDMI, DVI-D, and HD YPbTr outputs on separate connectors.
Does this camera support remote control via a network?
Yes, it features a built-in browser-based user interface for remote control over an IP network.
What is the field of view for the RoboSHOT 12E?
The camera has a 70.2° horizontal field of view at the wide end and 6.8° at the tele end.
Is the RoboSHOT 12E QDVI TAA compliant?
Yes, this system is TAA compliant and carries FCC and CE certifications.
