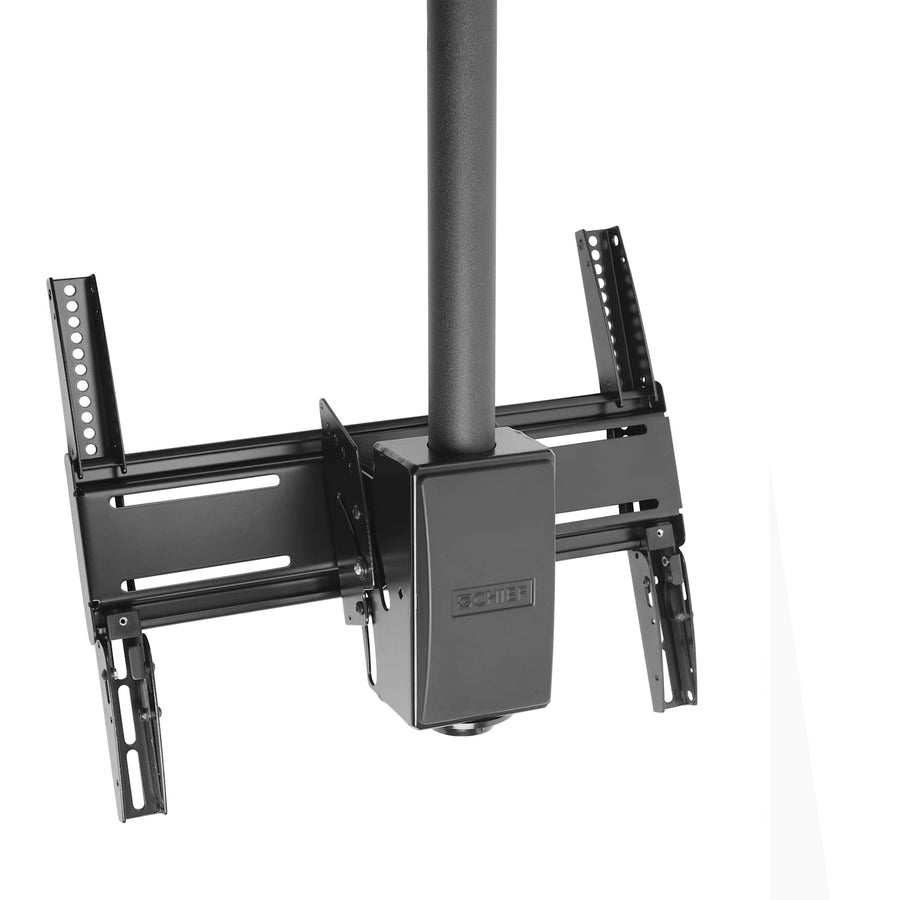

RMC1, Medium Fit™ Single Ceiling Mount
Single ceiling mount for 32" - 55" displays with tilt adjustment and UL Listing
The Chief RMC1 is a Medium Fit™ Single Ceiling Mount designed for high-impact digital signage and professional display installations. This mount provides optimized positioning for a single display with a typical screen size range of 32" - 55" (813mm - 1397mm). It supports a weight capacity of 125 lbs (56.7 kg) and accommodates VESA mounting patterns up to 457 x 400mm. For precise visual alignment, the mount offers tilt adjustments of +5° and -20°, along with a 3° roll adjustment. The RMC1 is UL Listed and supports both landscape and portrait orientations to meet specific installation requirements. This SKU is a component of a larger system; a ceiling plate and an extension column must be ordered separately to complete the assembly. It is designed for versatility, offering compatibility with both traditional 1.5" NPT and the newer CPA pinned ceiling plates and column systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 24.15" x 13.9" x 6.71"(613.5 x 353.1 x 170.5 mm) |
| Shipping Weight | 16.35 lbs (7.4 kg) |
| Typical Screen Size | 32" - 55" (813mm - 1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt |
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
All other specifications 7
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| TAA Compliant | No |
| Tilt | +5° and - 20° |
| UPC | 841872157672 |
| VESA Mounting Pattern | up to 457 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate with Adjustable Column
CMA700$150.40
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00
CMA372, Offset Unistrut Adapter
CMA372$66.40
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
Pin Connection Column 24 Inch (61 cm)-CPA024
CPA024$50.40
CMS0608, 6-8' Adjustable Extension Column, Pole
CMS0608$209.60
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Verified fitment
Questions about this part
What else do I need to buy to complete this installation?
The RMC1 is not a complete mount on its own; you must also order a ceiling plate and an extension column, such as the CMS0305 adjustable column, to complete the assembly.
Will this mount fit my specific display model?
The RMC1 is verified against 6,987 display models from 252 manufacturers, including the Samsung 305T and LG 26CS460T.
What mounting orientation is supported?
The RMC1 supports both landscape and portrait orientations for a single display.
What is the tilt range for the RMC1?
This mount provides tilt adjustment from -20° to +5° to assist with visual positioning.
Which ceiling plate systems are compatible with the RMC1?
It is compatible with traditional 1.5" NPT ceiling plates and the newer CPA pinned ceiling plates and column systems.
