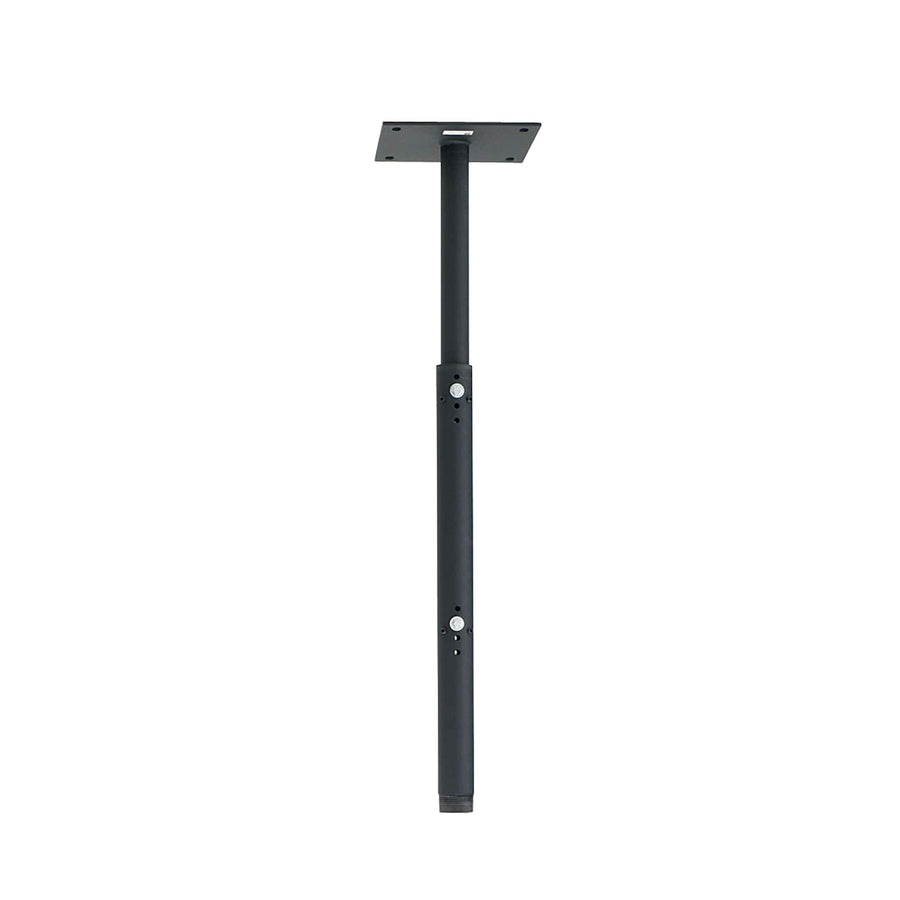

8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
Ceiling plate with an adjustable 1.5 inch NPT column, 24.25-46 inch extension, and 500 lbs capacity in black
The Chief CMA100 is a ceiling plate paired with an adjustable column extender to customize your specific installation height. This assembly provides a drop distance ranging from 24.25" to 46" (61.6–116.8 cm), allowing installers to achieve the precise vertical placement required for the space. To ensure structural integrity, the column includes four set screws to provide unmatched rigidity once secured. This unit features a 1.5 inch NPT column; installers requiring a 2" NPT version should look to the CMA260. The assembly has a weight capacity of 500 lbs (226.8 kg) and carries UL and OSHPD certifications for professional integration projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 8 in (20.3 cm) |
| Depth | 8 in (20.3 cm) |
| Extension | 24" - 46" (60.96cm - 116.84cm) |
| Height | 46.3 in (117.6 cm) |
| Overall Dimensions | 46.3" x 8.0" x 8.0" (1175 x 203 x 203 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 8 in (20.3 cm) |
All other specifications 5
| Accessory Type | Ceiling Plates and Adapters |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872002477 |
| Certifications | OSHPDUL Listed |
Resources
Questions about this part
Will the CMA100 work with my existing column?
This SKU is a ceiling plate with an integrated adjustable column. If you require a different column diameter, the CMA260 is the 2" NPT version of this series.
How much height can I adjust with the CMA100 column?
The adjustable column extender allows for a total drop distance between 24.25" and 46" (61.6–116.8 cm).
What is the weight capacity of this ceiling plate assembly?
The CMA100 supports a maximum weight capacity of 500 lbs (226.8 kg).
Is there documentation available for submittals?
Technical drawings, installation manuals, and CAD files are available in the resources tab for planning and submittal purposes.
What certifications does this unit carry?
The CMA100 is UL Listed and carries OSHPD certification.
