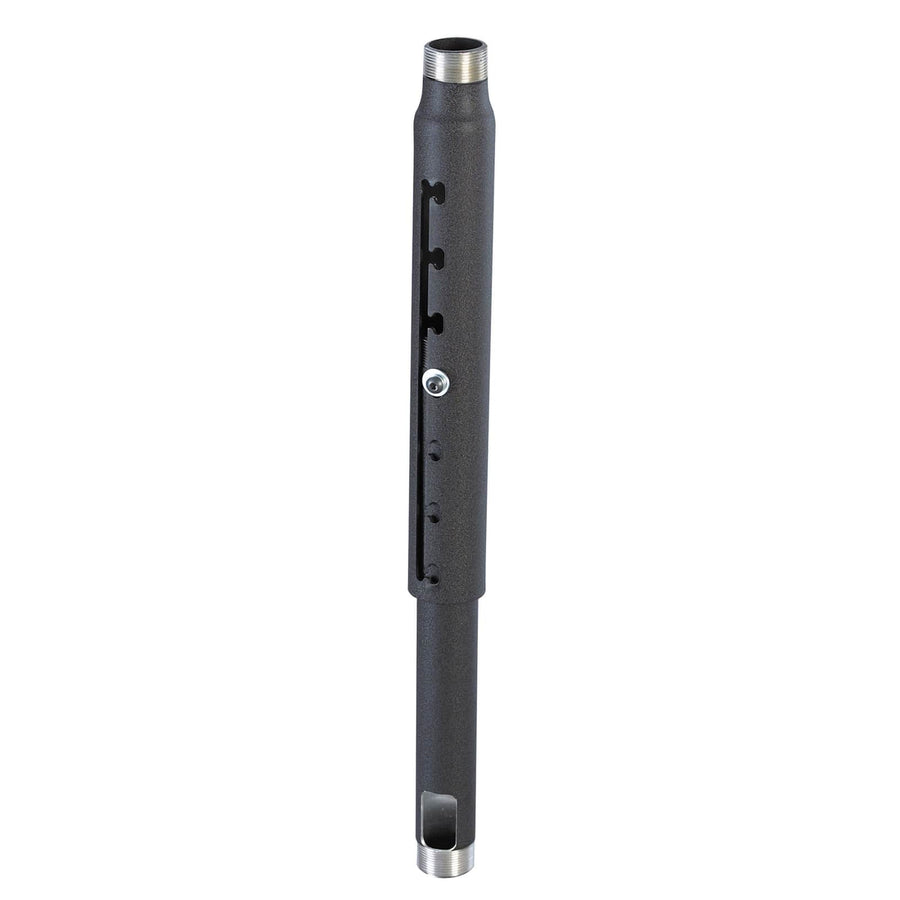

CMS0608, 6-8' Adjustable Extension Column, Pole
6' to 8' (1.83m - 2.44m) adjustable extension pole with 500 lbs capacity and 1" incremental height adjustment
The Chief CMS0608 is an adjustable extension column designed for professional pole-mounted projector or display installations. This black-finished pole provides a height extension range of 6' to 8' (1.83m - 2.44m), allowing installers to reach precise mounting heights without the need for full disassembly. Featuring a notched design, the column enables height adjustments in 1" increments, and an included set screw ensures added stability once the desired position is reached. This 1.5" NPT column is threaded on both ends and can be used in combination with any Chief 1.5" NPT ceiling plate or compatible accessory. It is TAA compliant and UL listed for professional system integration applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 6' - 8' (1.83m - 2.44m) |
| Height | 96 in (243.8 cm) |
| Overall Dimensions | 96.0" x 2.3" x 2.3" (2438 x 59 x 59 mm) |
| Shipping Weight | 9.95 lbs (4.5 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092881 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Decorative Ceiling Tile Ring - CPA640W
CPA640W$17.60
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Questions about this part
How much weight can the CMS0608 support?
This extension column has a weight capacity of 500 lbs (226.8 kg).
Can I use this with a Chief ceiling plate?
Yes, this column can be used with any Chief 1.5" NPT ceiling plate or other compatible accessory.
What is the height adjustment range for the CMS0608?
The column provides an extension range of 6' to 8' (1.83m - 2.44m) and allows for height adjustments in 1" increments.
Does this column include a set screw for stability?
Yes, the CMS0608 includes a set screw to provide added stability once the column is adjusted to the desired height.
Is the CMS0608 TAA compliant?
Yes, this product is TAA compliant and is UL listed.
