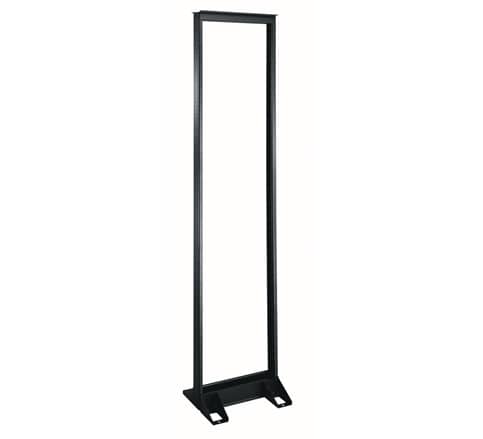

RL Series 2 Post Steel Open Frame Rack - RL12-45
45 RU 2-post steel open frame rack, 1600 lbs capacity, 12-24 threaded rails, and TAA compliant
The RL12-45 is a 45 RU 2-post steel open frame rack designed for high-density equipment integration. This unit features a self-squaring, self-leveling design to ensure rapid and easy assembly on-site. Constructed from 11-gauge steel channels, the rack is built for extreme strength, offering a total weight capacity of 1600 lbs (725.7 kg) and a UL load capacity of 400 lbs (181.4 kg). The rails utilize 12-24 threaded mounting with numbered spaces for efficient hardware installation. This model arrives shipping flat to maximize transport efficiency and can be quickly assembled due to its self-aligning architecture. The top rails are designed to accommodate standard cable ladders for organized overhead routing. To mount vertical power strips within this frame, the PB-5A power bracket is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.25 in (38.7 cm) |
| Height | 84.62 in (214.9 cm) |
| Rack Units | 45 RU |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 3 in (7.6 cm) |
| Usable Height | 78.75 in (200 cm) |
| Weight Capacity | 1600 lbs (725.7 kg) |
| Width | 19.62 in (49.8 cm) |
All other specifications 6
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 12-24 |
| TAA Compliant | Yes |
| UPC | 656747014451 |
| Certifications | TAAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
45 RU Cable Duct 6 Inches Wide - Dual Duct
VCD-6-45-DC$1,913.40
45 RU Cable Duct, 4 Inches Wide x 8 Inches Deep , Dual duct
PCD-4-8-45DC$410.40
45 RU Cable Duct, 3 Inches Wide x 6 Inches Deep , Dual duct
PCD-3-6-45DC$390.60
1 RUs Horizontal Cable Manager with Cable Clips & D-Rings
HCM-1V$66.60
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will the RL12-45 work with my vertical power strips?
To mount vertical power strips in this rack, you will need to purchase the PB-5A power bracket separately.
What is the weight capacity of the RL12-45?
The rack has a total weight capacity of 1600 lbs (725.7 kg) and a UL load capacity of 400 lbs (181.4 kg).
What kind of mounting hardware does this rack use?
The RL12-45 uses 12-24 threaded rails with numbered spaces for efficient assembly.
Does this rack include mounting hardware?
The unit includes 50 rack screws for installation.
Is this rack TAA compliant for government contracts?
Yes, the RL12-45 is TAA compliant and is manufactured in the USA.
