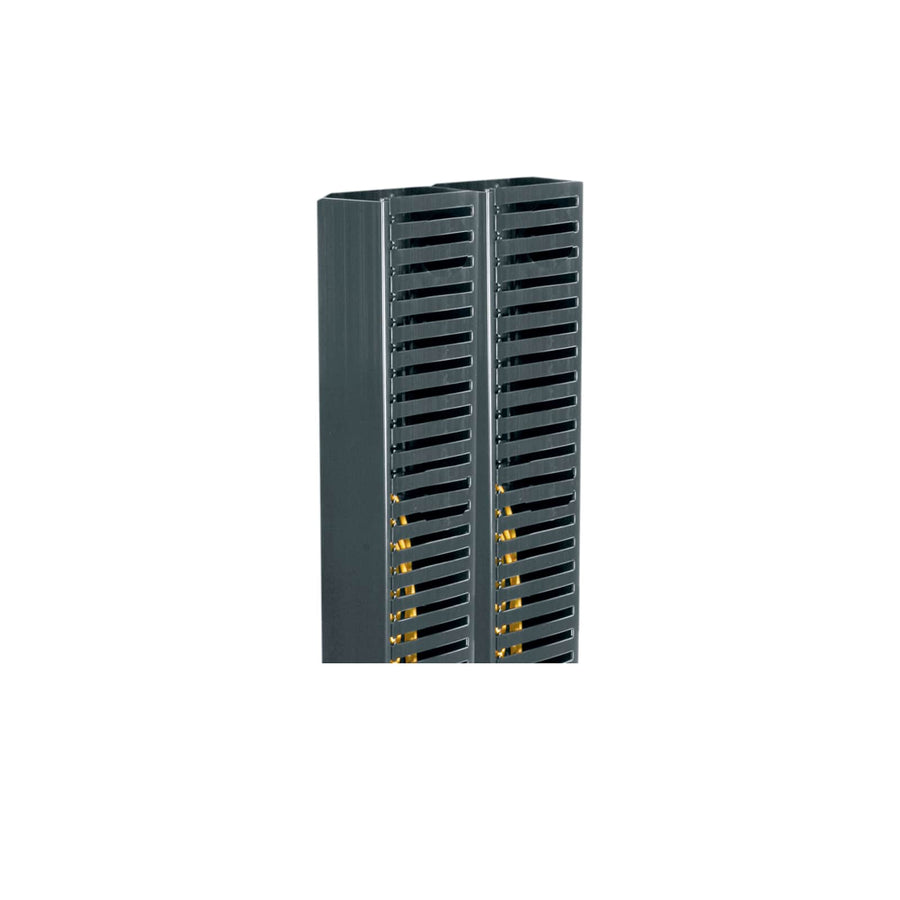

45 RU Cable Duct, 3 Inches Wide x 6 Inches Deep , Dual duct
45 RU vertical cable duct with 3 in. width, 6 in. depth, and dual channel design for organized cable routing
The Middle Atlantic PCD-3-6-45DC is a vertical cable duct designed to provide an organized solution for protecting and routing cables in medium to low density installations. This 45 RU unit features a 3 in (7.6 cm) width and a 6 in (15.2 cm) depth. The dual channel configuration is optimized for efficient management of cabling and cords within a rack environment. The slotted finger design allows for precise horizontal cable access, and these fingers can be removed to create larger openings for bulkier runs. The system includes plastic covers to hide cabling and maintain a clean aesthetic, and it is ready to be mounted either to the side of, or between, 2-post and 4-post racks. This specific SKU is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6 in (15.2 cm) |
| Height | 80 in (203.2 cm) |
| Package Count | 1 |
| Rack Units | 45 RU |
| Shipping Weight | 15.7 lbs (7.1 kg) |
| Width | 3 in (7.6 cm) |
| UPC | 656747114625 |
Resources
Questions about this part
How is the PCD-3-6-45DC mounted in a rack?
This duct is ready to mount to either side or in between two 2-post and 4-post racks.
Can I adjust the openings for larger cable bundles?
Yes, the slotted finger design allows fingers to be easily removed to create larger openings where needed.
Is the PCD-3-6-45DC TAA compliant?
Yes, this product is TAA compliant.
What is the difference between this and single channel ducts?
This 6 in (15.2 cm) deep model is a dual channel version, whereas the single channel options come in 3 in and 4 in depths.
What documentation is available for submittals?
You can find the PCD Series Plastic Cable Ducts CAD Technical Specification Drawings (dwg) and the Instruction Sheet (PDF) in the resources section.
