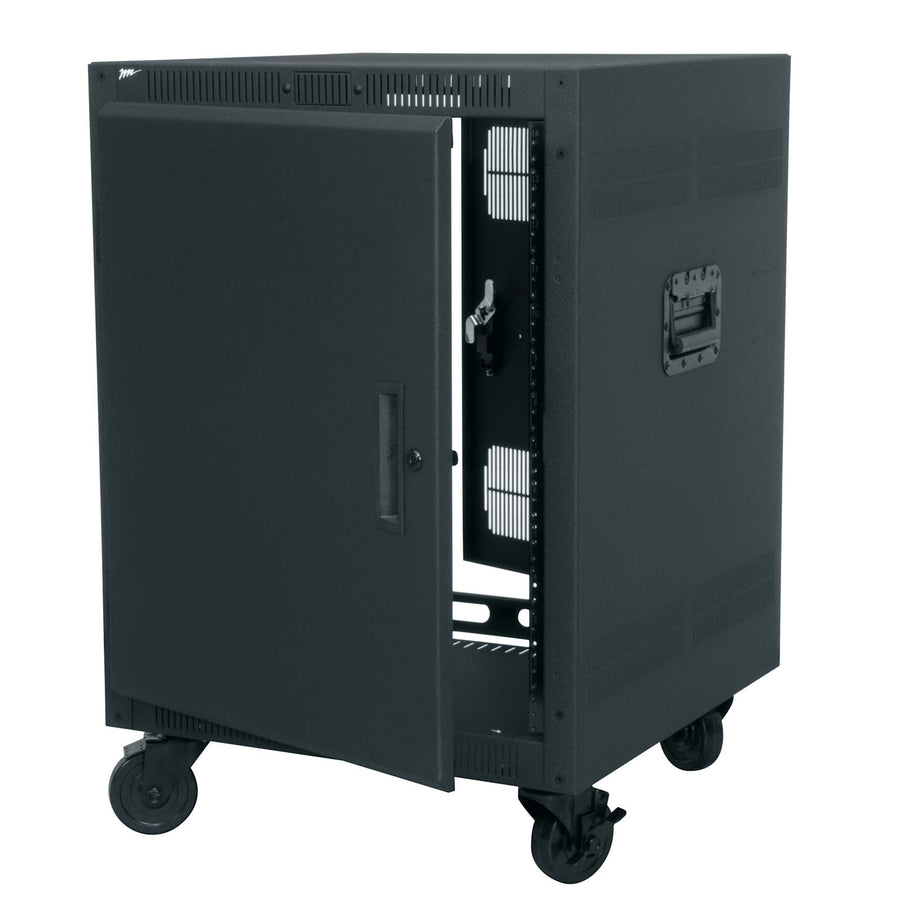

PTRK Series Portable Rolling Rack - PTRK-1426
14 RU mobile rolling rack with 500 lbs capacity, keylocked doors, and heavy-duty locking casters for rugged transport
The Middle Atlantic PTRK-1426 is a 14 RU portable rolling rack built for environments where rugged portability is a requirement. Featuring fully welded steel construction, this rack provides a stable foundation for sensitive AV equipment with a 500 lbs (226.8 kg) weight capacity. For secure transport, the unit includes keylocked front and rear doors, along with spring-loaded recessed side handles. Thermal management is addressed through vented side panels, and the rear door is designed to accept fans to prevent overheating. This TAA compliant chassis offers a usable height of 24.5 in (62.2 cm) and a usable depth of 24.5 in (62.2 cm) within its 26.93 in (68.4 cm) total depth. For cable management, the bottom of the rack features dedicated slots for securing equipment and providing strain relief.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26.93 in (68.4 cm) |
| Height | 33.83 in (85.9 cm) |
| Rack Units | 14 RU |
| Shipping Weight | 115 lbs (52.2 kg) |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 24.5 in (62.2 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 22.59 in (57.4 cm) |
All other specifications 6
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071409 |
| Wood Laminate Top | No |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
100 CFM Fan Panel, 27dB
UQFP-4$630.90
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
14 RU Rackrail 10-32 for PTRK Series
PTRK-RR14$65.70
13 RU Lace Strip 4.75 Inch Wide with Tie Posts - 6 Pieces
LACE-13-OWP$207.90
100 CFM Fan Panel, 27dB, Anodized
UQFP-4RA$647.10
Questions about this part
Will the PTRK-1426 fit my rack equipment?
This 14 RU rack features standard 10-32 threaded rackrails and provides a usable depth of 24.5 in (62.2 cm) for mounting your hardware.
What is the maximum load for this mobile rack?
The PTRK-1426 is built with fully welded steel and supports a total weight capacity of 500 lbs (226.8 kg).
What accessories are needed for power and cooling?
You can add cooling via a UQFP-4 fan panel or a QFAN 115V fan, and power can be managed with PD-815SC or PD-715SC-NS vertical power strips.
Is this rack suitable for secure deployments?
Yes, the PTRK-1426 includes both front and rear doors that are keylocked as a standard security feature.
Which documents are available for submittals?
Technicians can access the PTRK Series Portable Rack 3 Part Specification or the 3D CAD Drawings via the Resources tab for submittal packages.
