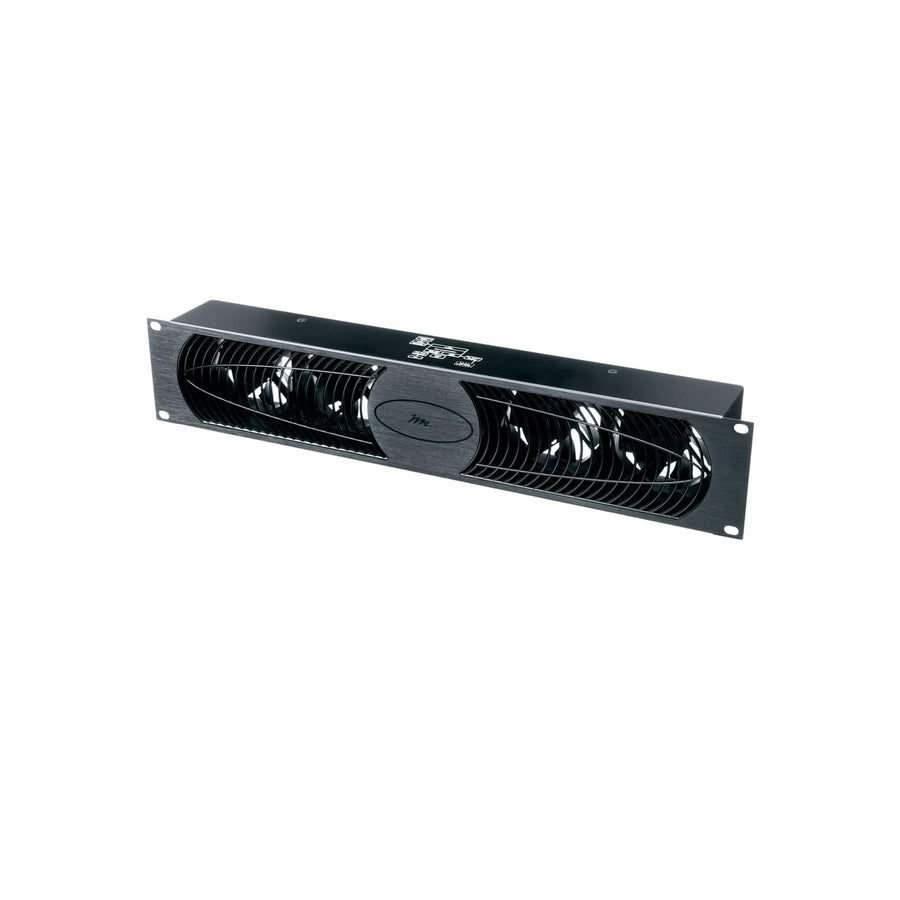

100 CFM Fan Panel, 27dB, Anodized
2 RU thermal management panel providing 100 CFM of airflow at 27 dB with intelligent thermostatic control
The UQFP-4RA is a 2 RU active thermal management solution designed to provide intelligent, quiet cooling within professional equipment racks. This 19 in (48.3 cm) wide panel delivers 100 CFM of airflow at a noise level of 27 dB. It utilizes an on-board digital processor that performs intelligent thermostatic proportional control, varying fan speeds based on real-time temperature monitoring via an external sensor. To ensure system reliability, the unit provides both local and remote notifications for over-temperature conditions, fan faults, or external sensor failures. This specific model features a brushed and anodized finish in black. For complex deployments, this panel works as part of a new intake/exhaust two-panel system to improve airflow through densely populated racks. The unit operates on a 120V AC voltage input and provides 5 VDC to the internal components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 100 |
| Depth | 2.96 in (7.5 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 11
| Available Internationally | No |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| TAA Compliant | No |
| Thermistor | No |
| UPC | 656747103865 |
| Patents | URL |
Resources
Questions about this part
How does the UQFP-4RA manage fan speed?
The on-board digital processor uses an external sensor to monitor equipment temperature and provides intelligent thermostatic proportional control to vary the fan speed.
What kind of notifications does this fan panel provide?
The UQFP-4RA provides local and remote notifications for fan faults, over-temperature events, and external sensor failures to assist with system monitoring.
Will this work in a high-density rack environment?
Yes, when used as part of an intake/exhaust two-panel system, this unit helps improve cooling airflow in densely populated racks.
What is the noise level of the UQFP-4RA?
This fan panel is rated to provide 100 CFM at a noise level of 27 dB.
Which document should I use for a submittal?
The UQFP Series Ultra Quiet Fan Panels A&E Specification Sheet (PDF) is available for technical submittals.
