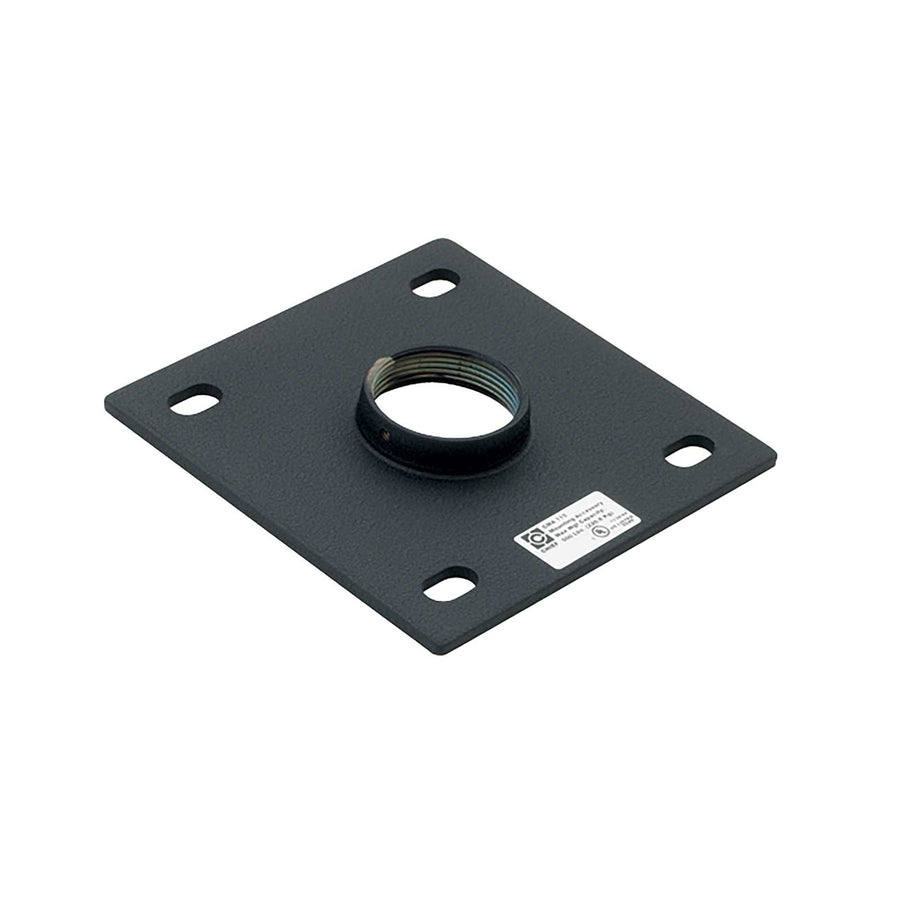

6 Inch (152 mm) Ceiling Plate
6 inch ceiling plate for projector installations, 500 lbs capacity, UL Listed and OSHPD approved
The Chief CMA115 is a 6 in (15.2 cm) flat ceiling plate designed for simple and cost-effective projector mounting installations. This black accessory provides an attractive and fast solution for basic ceiling-mounted setups. Engineered for structural integrity, the plate supports a weight capacity of 500 lbs (226.8 kg). It features overall dimensions of 0.7" x 6.0" x 6.0" (17 x 152 x 152 mm) with a depth of 6 in (15.2 cm). For projects requiring specific regulatory compliance, this unit is UL Listed and carries OSHPD Pre-Approval. This specific model is part of a larger series that includes various sizes and finishes, including white and silver variants, to suit different environmental aesthetics.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 6 in (15.2 cm) |
| Depth | 6 in (15.2 cm) |
| Height | 0.7 in (1.8 cm) |
| Overall Dimensions | 0.7" x 6.0" x 6.0" (17 x 152 x 152 mm) |
| Shipping Weight | 2-2 lbs (0.91-0.91 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 6 in (15.2 cm) |
| Accessory Type | Ceiling Plates and Adapters |
All other specifications 6
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872002514 |
| Certifications | OSHPDUL Listed |
Resources
Questions about this part
What is the weight capacity of the Chief CMA115?
The CMA115 is rated for a weight capacity of 500 lbs (226.8 kg), making it suitable for heavy projector assemblies.
What are the dimensions of the CMA115 ceiling plate?
The plate measures 0.7" x 6.0" x 6.0" (17 x 152 x 152 mm) with a 6 in (15.2 cm) width and depth.
Is the CMA115 suitable for OSHPD regulated projects?
Yes, this ceiling plate carries OSHPD Pre-Approval and is UL Listed for use in professional installations.
What is the difference between the CMA115 and other CMA series plates?
The CMA115 is a 6 inch black plate; other models in the series offer different sizes such as 4 in or 8 in, and different finishes like white or silver.
Which installation documents are available for the CMA115?
You can access the CMA115 Technical Drawing, the CMA115W CAD Drawing, and the CMA115 Installation Manual for submittals and setup.
