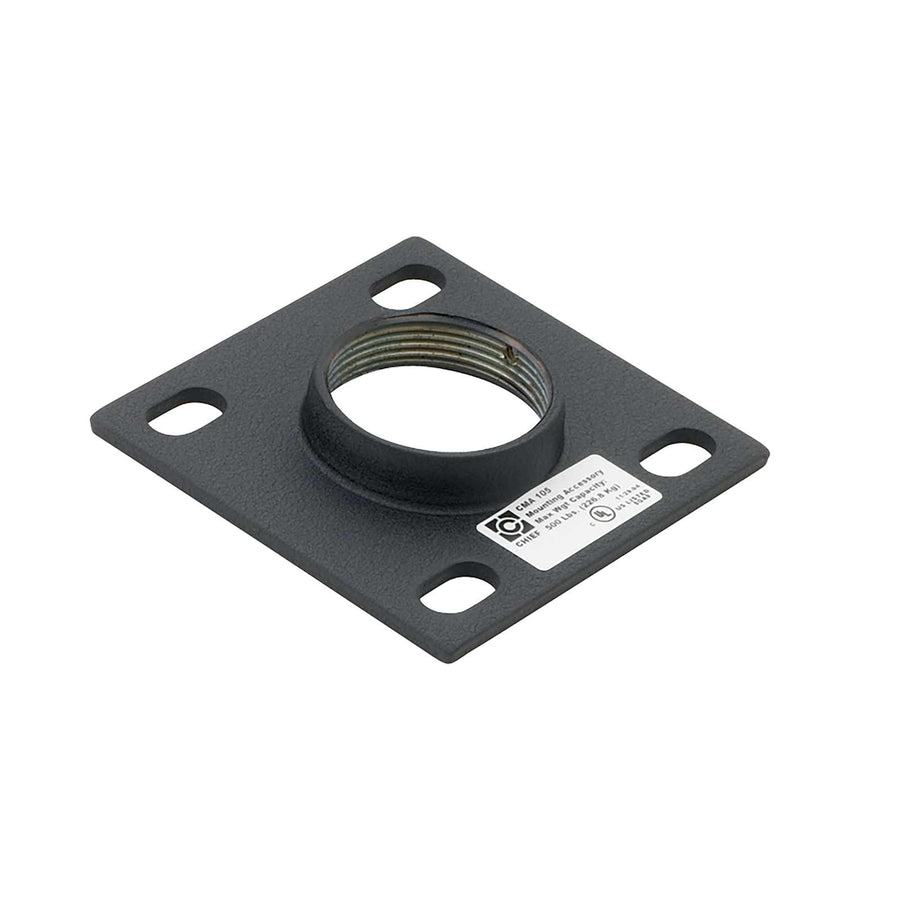

4 Inch (102 mm) Ceiling Plate
4 inch black ceiling plate for simple projector installations, featuring a 500 lbs weight capacity and UL and OSHPD listings
The Chief CMA105 is a 4 inch (102 mm) ceiling plate designed for straightforward ceiling installations. This flat ceiling plate provides a cost-effective and attractive way to secure equipment in basic mounting scenarios. The unit features a 0.7 inch (1.8 cm) height and a 4 in (102 mm) width and depth, resulting in overall dimensions of 0.7" x 4.0" x 4.0" (17 x 102 x 102 mm). It is built to support a weight capacity of 500 lbs (226.8 kg) for secure mounting. This black-finish plate is UL listed and carries OSHPD pre-approval documentation for use in specific structural applications. While this 4 inch model is black, other variants in the series are available in silver or white finishes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 4 in (10.2 cm) |
| Depth | 4 in (10.2 cm) |
| Height | 0.7 in (1.8 cm) |
| Overall Dimensions | 0.7" x 4.0" x 4.0" (17 x 102 x 102 mm) |
| Shipping Weight | 2-2 lbs (0.91-0.91 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 4 in (10.2 cm) |
| Accessory Type | Ceiling Plates and Adapters |
All other specifications 6
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872002491 |
| Certifications | OSHPDUL Listed |
Resources
Questions about this part
Is the Chief CMA105 suitable for heavy equipment?
Yes, this ceiling plate supports a weight capacity of up to 500 lbs (226.8 kg).
What certifications does the CMA105 have?
The CMA105 is UL listed and is covered under OSHPD pre-approval documentation.
What are the dimensions of this ceiling plate?
The plate measures 0.7" x 4.0" x 4.0" (17 x 102 x 102 mm) and has a 4 in (102 mm) size.
Does the CMA105 come in colors other than black?
This specific SKU is black, but the series also offers options in white and silver.
Which document is required for submittals?
You can use the CMA105 OSHPD Pre-Approval Documentation for structural submittals.
