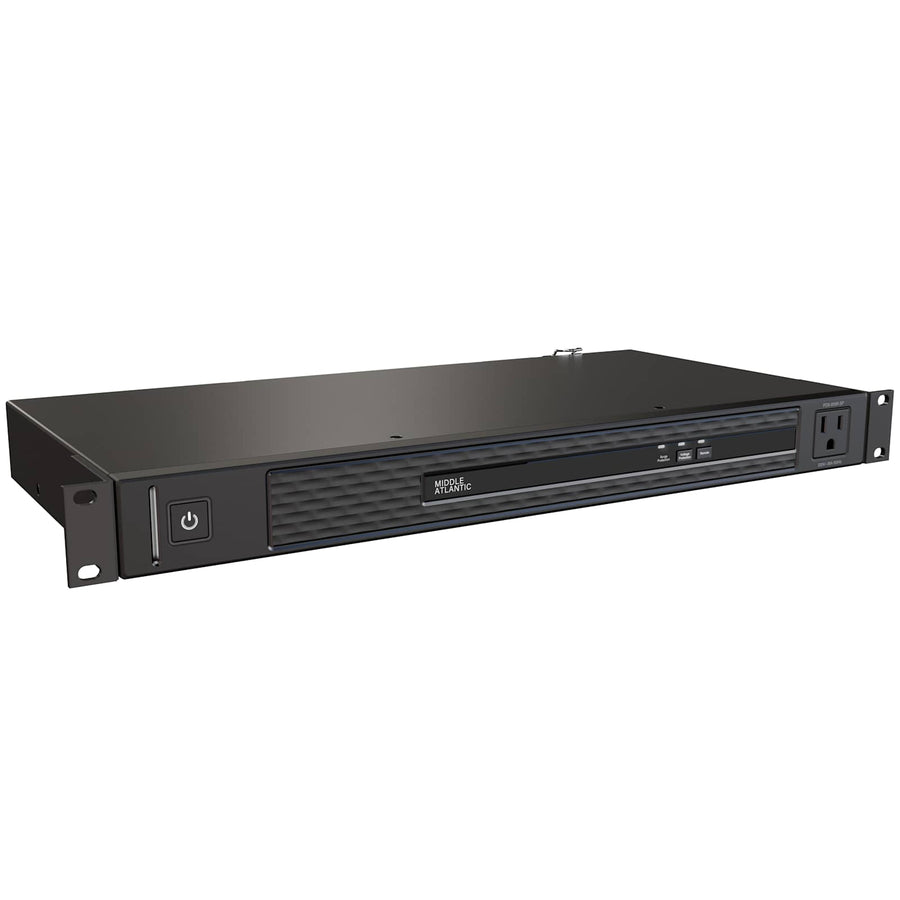

NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
1 RU rackmount PDU with 9 NEMA 5-15R outlets, 15 Amp capacity, and integrated series surge protection
The PDX-915R-SP is a NEXSYS Series Rackmount Power unit designed specifically for professional AV environments. This 1 RU power distribution unit provides 9 NEMA 5-15R receptacles and operates on a 120 VAC input. It is engineered with patented series surge protection technology that is 100% MOV-free, providing fast, non-degrading protection without contaminating the system ground. To manage power for sensitive equipment, this PDU offers selectable on/off voltage protection via the front panel; in the event of an over or under-voltage scenario, the unit automatically disconnects the outlets and restores power once voltage returns to an acceptable range. This model features a 9 ft (2.7 m) NEMA 5-15P power cord and includes a convenience outlet on the front of the chassis. For advanced system integration, the unit supports remote control via contact closure. This UL Listed PDX-915R-SP is covered by a 12-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 8.75 in (22.2 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 11.82 lbs (5.4 kg) |
All other specifications 13
| Width | 19 in (48.3 cm) |
| Control Type | Contact Closure |
| Isolated Ground | No |
| Outlet Count | 9 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Series Protection |
| TAA Compliant | No |
| UPC | 656747396328 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Warranty | 12 Years |
Resources
Questions about this part
Will the PDX-915R-SP protect my AV equipment from voltage spikes?
Yes, it uses patented series surge protection technology that is 100% MOV-free to protect your gear without contaminating the system ground.
How does the automatic voltage protection work on this PDU?
If an over or under voltage event occurs, the PDX-915R-SP automatically turns the outlets off to protect equipment and restores power once voltage returns to the acceptable range.
Can I control this rackmount PDU remotely?
The PDX-915R-SP supports remote control of power functions via contact closure.
What is the difference between this and other NEXSYS PDUs?
While this SKU is a 15 Amp model with 9 outlets, the NEXSYS series also offers 20A versions for different power requirements.
What documents are available for submittals?
You can access the NEXSYS Rackmount PDU A&E Specification Sheet, CAD Technical Specification Drawings, and Revit Models in the resources section.
