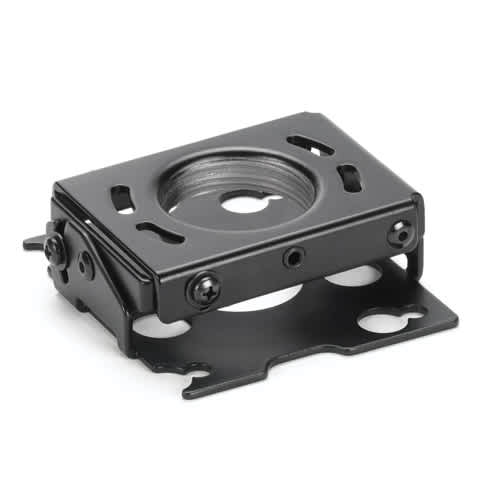

Mini RPA Projector Mount (mount only)-RSA000S
Ceiling-mounted projector assembly featuring independent roll, pitch, and yaw for precise registration of small projectors
The Chief RSA000S is a compact projector mount assembly designed specifically for smaller projectors. This unit is the top assembly only and does not include the projector interface bracket. To complete the installation, you will need a specific interface bracket that matches your projector; use the SLBUS universal bracket or consult Chief's MountFinder™ to identify the correct model. The RSA000S provides a footprint approximately 1/3 smaller than the standard RPA series while retaining all essential adjustment features. It features independent roll, pitch, and yaw for quick, precise registration during installation. The quick connect/disconnect mechanism allows for easy access to lamps and filters on most projectors without losing your preset adjustments. For secure installation, it utilizes All-Points Security steel-into-steel locking hardware at every connection point. This UL Listed mount supports ceiling applications and can be configured as a flush mount, via 0.25" threaded rods, or via a 1.5" NPT column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3"(336.6 x 336.6 x 76.2 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Mount only |
| TAA Compliant | No |
| UPC | 841872119717 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Does the RSA000S include the projector attachment bracket?
No, this SKU is the top assembly only. You must purchase a separate interface bracket, such as the SLBUS universal bracket, to connect the mount to your projector.
Can I adjust the projector's position after it is mounted?
Yes, the mount features independent roll, pitch, and yaw, allowing for quick and precise registration of the projector image.
What mounting options are available for ceiling installation?
The RSA000S supports several configurations: a flush mount directly to the ceiling, installation using 0.25" threaded rods, or use with a 1.5" NPT column.
How easy is it to access the projector lamp or filter?
The quick connect/disconnect feature allows for convenient access to lamps and filters on most projectors without disrupting your preset adjustments.
Is the RSA000S theft-resistant?
Yes, the mount utilizes All-Points Security steel-into-steel locking hardware at all connection points to protect against theft.
