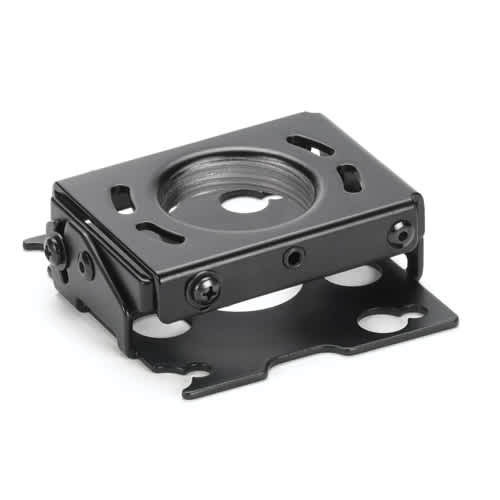

Mini RPA Projector Mount (mount only)-RSA000
Compact ceiling mount for smaller projectors, featuring independent roll, pitch, and yaw adjustability with a 25 lbs capacity
The Chief RSA000 is a compact ceiling projector mount designed specifically for smaller projectors. This mount is approximately one-third the size of the standard RPA Series while retaining the same essential features for professional installation. It offers independent roll, pitch, and yaw adjustability, allowing installers to achieve quick and precise projector registration. For those needing to perform maintenance, the design allows for quick connect/disconnect access to the lamp and filter on most projector models. This disconnection feature is engineered to maintain registration, ensuring that preset adjustments are not lost. For security, the RSA000 utilizes All-Points Security steel-into-steel locking hardware at all connection points to protect against theft. This UL Listed mount provides versatile installation options, including flush mounting directly to the ceiling, use with 0.25" threaded rods, or attachment to a 1.5" NPT column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3"(336.6 x 336.6 x 76.2 mm) |
| Shipping Weight | 1.85 lbs (0.8 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Mount only |
| TAA Compliant | No |
| UPC | 841872119700 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Will the RSA000 fit my projector?
This is a mount-only interface for smaller projectors. You can use the Chief MountFinder tool to verify compatibility with your specific projector model.
How do I adjust the projector once it is mounted?
The mount features independent roll, pitch, and yaw adjustability, allowing you to perform quick and precise registration for the optimal image.
What mounting options are available for the RSA000?
You can install this mount flush to a ceiling, via 0.25" threaded rods, or using a 1.5" NPT column.
Can I access the projector lamp without dismantling the whole mount?
Yes, the design allows for quick connect/disconnect to provide access to the lamp and filter on most projectors without losing your registration.
What accessories are compatible with this mount?
Compatible accessories include the CMA151 1.5 Inch to 1 Inch NPT Adapter, CMA362 C-Clamp, and CMA502 Single Electric Outlet Coupler.
