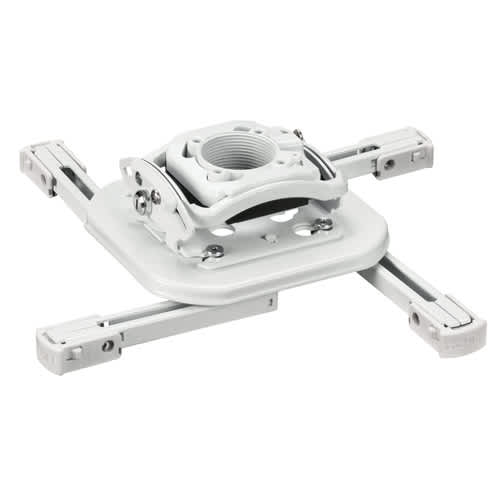

Mini Elite Universal Projector Mount (Lock D)-RSMDUW
White ceiling mount for smaller projector models with 25 lbs capacity and micro-adjustable pitch
The Chief RSMDUW is a white, miniature version of the RPA Elite ceiling projector mount, specifically scaled for smaller projector models. This universal solution provides the same advanced adjustment features as the full-sized series but in a compact footprint. It is designed for ceiling applications and features independent roll, pitch, and yaw capabilities to ensure precise alignment. The mount includes micro-adjustable pitch, allowing for a 15° range of motion to fine-tune the image projection. It is UL Listed and supports a weight capacity of up to 25 lbs (11.3 kg). This mount is verified against 6,638 display models from 108 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K400x, Panasonic PT-AE1000U, NEC HT 1100, and BenQ 7765PA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10.25" x 10.25" x 4"(260.4 x 260.4 x 101.6 mm) |
| Shipping Weight | 5.29 lbs (2.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | White |
| Interface Type | Universal |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119991 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will this mount fit my specific projector model?
This mount is verified against 6,638 models from 108 manufacturers, including Epson, Optoma, Panasonic, NEC, BenQ, and Hitachi. Use the Chief MountFinder tool to confirm your specific device's compatibility.
What is the maximum weight capacity for the RSMDUW?
The RSMDUW supports a maximum weight capacity of 25 lbs (11.3 kg) for ceiling-mounted projectors.
How much pitch adjustment can I make once installed?
The mount features micro-adjustable pitch providing a 15° range to help achieve correct image alignment.
What accessories are needed for specialized mounting scenarios?
For different installation needs, you can use accessories like the CMA360 I-Beam Clamp, CMA362 C-Clamp, or the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit.
What documentation is available for installation and submittals?
You can access the RSM Installation Manual for setup, or use the RSM Technical Drawing and CAD files for submittal and planning purposes.
