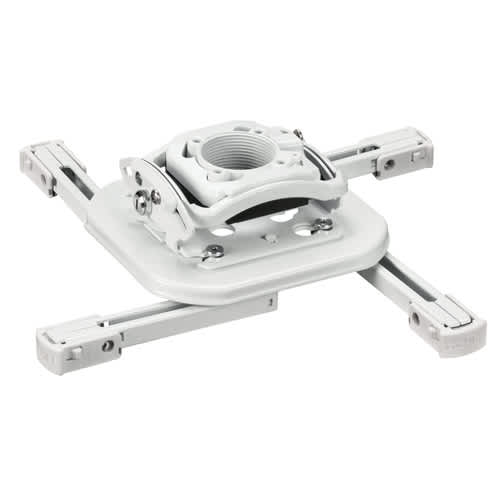

Mini Elite Universal Projector Mount (Lock C)-RSMCUW
Universal ceiling projector mount for smaller models, 25 lbs capacity, with micro-adjustable pitch and roll-pitch-yaw.
The RSMCUW is a miniature version of the RPA Elite series, specifically designed to accommodate smaller projector models. This white ceiling mount provides a space-efficient solution for compact projectors while retaining the essential adjustability of the full-sized Elite line. It features independent roll-pitch-yaw and micro-adjustable capabilities to ensure precise alignment during installation and servicing. This universal solution is rated for a weight capacity of 25 lbs (11.3 kg) and is UL Listed for safety and reliability. For installers requiring specialized mounting, various accessories are available, including the CMA165 Internal Joist Ceiling Kit and the CMA362 C-Clamp. The RSMCUW is a versatile ceiling application mount that allows for precise positioning in classrooms, boardrooms, or small meeting spaces where a heavy-duty mount would be oversized.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10.25" x 10.25" x 4"(260.4 x 260.4 x 101.6 mm) |
| Shipping Weight | 5.35 lbs (2.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | White |
| Interface Type | Universal |
All other specifications 5
| Locking Type | C |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119939 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMCUW fit my projector?
This mount is verified against 6,637 display models from 108 manufacturers, including EPSON BrightLink 430W, OPTOMA 4K400STx, and Panasonic PT-AE100E.
What accessories are needed for different ceiling types?
Depending on your installation site, you may need the CMA165 Internal Joist Ceiling Kit or a CMA360 I-Beam Clamp.
How much weight can this mount support?
The RSMCUW is rated for a maximum weight capacity of 25 lbs (11.3 kg).
What kind of adjustability does this mount offer?
It features micro-adjustability and independent roll-pitch-yaw, including a 15° pitch adjustment range.
Which documents are available for submittals?
You can access the RSM Installation Manual (PDF) or the RSM Technical Drawing (PDF) for detailed installation and submittal requirements.
