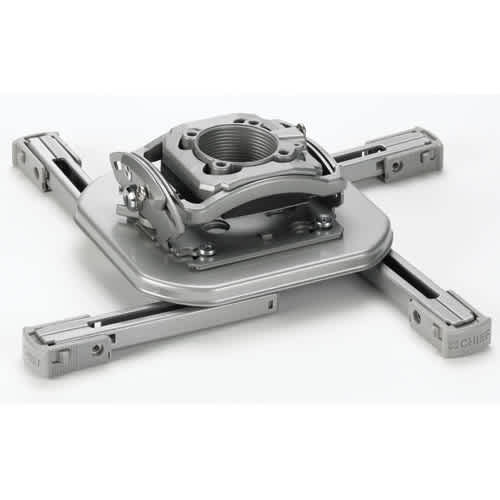

Mini Elite Universal Projector Mount (Lock B)-RSMBUS
Ceiling mount for small projectors, featuring 25 lbs capacity and micro-adjustable pitch, roll, and yaw
The Chief RSMBUS is a miniature version of the RPA Elite series, specifically designed for smaller projector models. This ceiling-mounted solution provides a compact footprint while retaining full adjustment capabilities, including independent micro-adjustable roll, pitch, and yaw. The integrated pitch adjustment offers a 15° range to ensure precise image alignment. It is engineered for universal application, supporting a vast array of equipment, and is UL Listed for safety and reliability. This mount is ideal for installations where space is limited but high-precision positioning is required. For complex mounting scenarios, various accessories can expand the installation, such as the CMA362 C-Clamp or the CMA370 Unistrut Adapter. The RSMBUS is a specialized alternative to the standard RPA series, offering nearly half the size for lightweight, professional projector setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10" x 10" x 4.25"(254 x 254 x 108 mm) |
| Shipping Weight | 5.3 lbs (2.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Universal |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119861 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMBUS fit my specific projector?
The RSMBUS is verified against 6,638 display models from 108 manufacturers, including EPSON BrightLink 1480Fi, OPTOMA 4K400x, and Panasonic PT-AE100E.
What adjustments can I make once the mount is installed?
This mount features micro-adjustable roll, pitch, and yaw, including a dedicated 15° pitch adjustment to correct image alignment.
What accessories are compatible with this mount?
You can expand your installation with accessories like the CMA160 Electrical Storage Enclosure, CMA360 I-Beam Clamp, or the CMA385 Internal Joist Mount.
Is this mount suitable for ceiling installations?
Yes, this is a ceiling-application mount with a 25 lbs (11.3 kg) weight capacity.
Which installation documents are available for this SKU?
You can access the RSM Installation Manual and the RSM Technical Drawing PDF for submittals and setup guidance.
