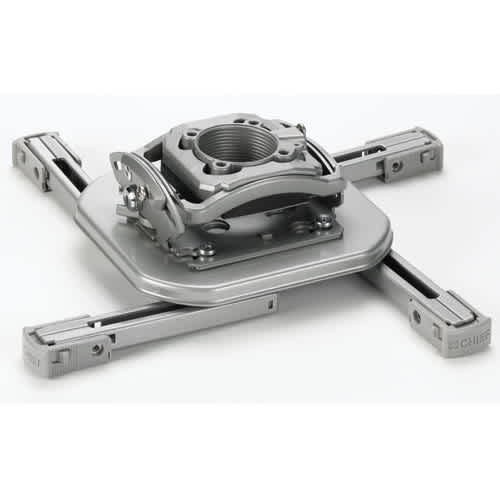

Mini Elite Universal Projector Mount (Lock A)-RSMAUS
Ceiling-mount projector solution for smaller models, featuring micro-adjustable pitch and independent roll-pitch-yaw adjustments
The RSMAUS Mini Elite Universal Projector Mount (Lock A) is a compact ceiling-mount solution designed specifically for smaller projector models. This miniature version of the RPA Elite series provides the same comprehensive adjustability features as its larger counterparts but in a much smaller footprint. It is engineered for ceiling applications and features independent roll, pitch, and yaw adjustments to ensure precise alignment after installation. The mount includes a 15° pitch adjustment and micro-adjustable capabilities to facilitate fine-tuning the image projection. With a weight capacity of 25 lbs (11.3 kg), it is optimized for lightweight projectors. For complex installation environments, this mount can be paired with various accessories such as the CMA165 Internal Joist Ceiling Kit, the CMA370 Unistrut Adapter, or the CMA385 Internal Joist Mount to accommodate different mounting surfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 5.24 lbs (2.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Universal |
All other specifications 5
| Locking Type | A |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119809 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will this mount fit my specific projector model?
This mount is verified against 6,640 display models from 109 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K400x, Panasonic PT-AE100U, and BenQ 7765PA.
What is the maximum weight capacity for the RSMAUS?
The mount is rated for a weight capacity of 25 lbs (11.3 kg).
How much pitch adjustment does this mount provide?
This mount provides a 15° pitch adjustment along with micro-adjustable capabilities for precise alignment.
What accessories are compatible with this mount?
You can expand installation options using the CMA362 C-Clamp, CMA360 I-Beam Clamp, or the CMA165 Internal Joist Ceiling Kit.
Is this mount UL listed?
Yes, the RSMAUS is UL Listed.
