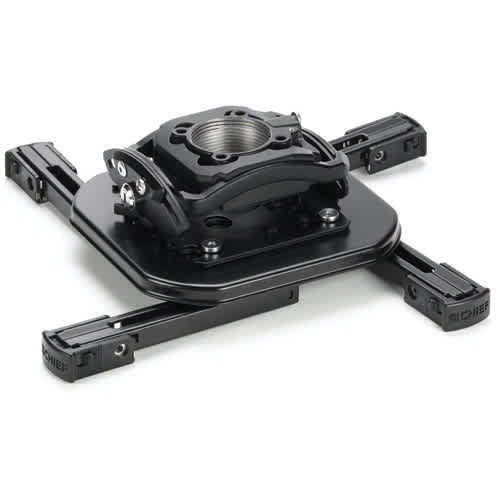

Mini Elite Universal Projector Mount (Lock A)-RSMAU
Miniature ceiling mount for smaller projector models featuring micro-adjustable pitch, roll, and yaw
The Chief RSMAU is a miniature version of the RPA Elite series, specifically scaled down for smaller projector models. This universal ceiling mount provides the same advanced adjustment capabilities as the full-sized Elite line but in a compact form factor that takes up nearly half the space. Designed for professional installations, the RSMAU offers independent roll, pitch, and yaw micro-adjustability to ensure precise image alignment. The mount supports a weight capacity of 25 lbs (11.3 kg) and features a 15° pitch adjustment range. This unit is UL Listed and uses a Lock A mechanism for securing the device. For installations requiring specific heights, it is compatible with various extension columns like the CMS048W. This universal solution is verified against 6,640 display models from 109 manufacturers, making it a versatile choice for tight mounting environments where a full-sized mount would be too bulky.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 5.28 lbs (2.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
All other specifications 5
| Locking Type | A |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119793 |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS048W, 48 Inch Fixed Extension Column, Pole
CMS048W$80.00
I-Beam Clamp
CMA360$318.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Verified fitment
Questions about this part
Will the RSMAU fit my specific projector?
This mount is verified against 6,640 models from 109 manufacturers, including the EPSON BrightLink 1480Fi, OPTOMA 4K400STx, and PANASONIC PT-AE100E.
What is the weight limit for this projector mount?
The RSMAU has a maximum weight capacity of 25 lbs (11.3 kg).
Can I adjust the image angle after installation?
Yes, the mount features micro-adjustable independent roll, pitch, and yaw, with a 15° pitch adjustment range.
What else do I need to buy for a ceiling installation?
Depending on your ceiling type, you may need accessories such as the CMA165 Internal Joist Ceiling Kit or a CMS048W 48 Inch Fixed Extension Column.
Which document should I use for the submittal?
You can use the RSM Technical Drawing or the RSM Installation Manual for your project submittals.
