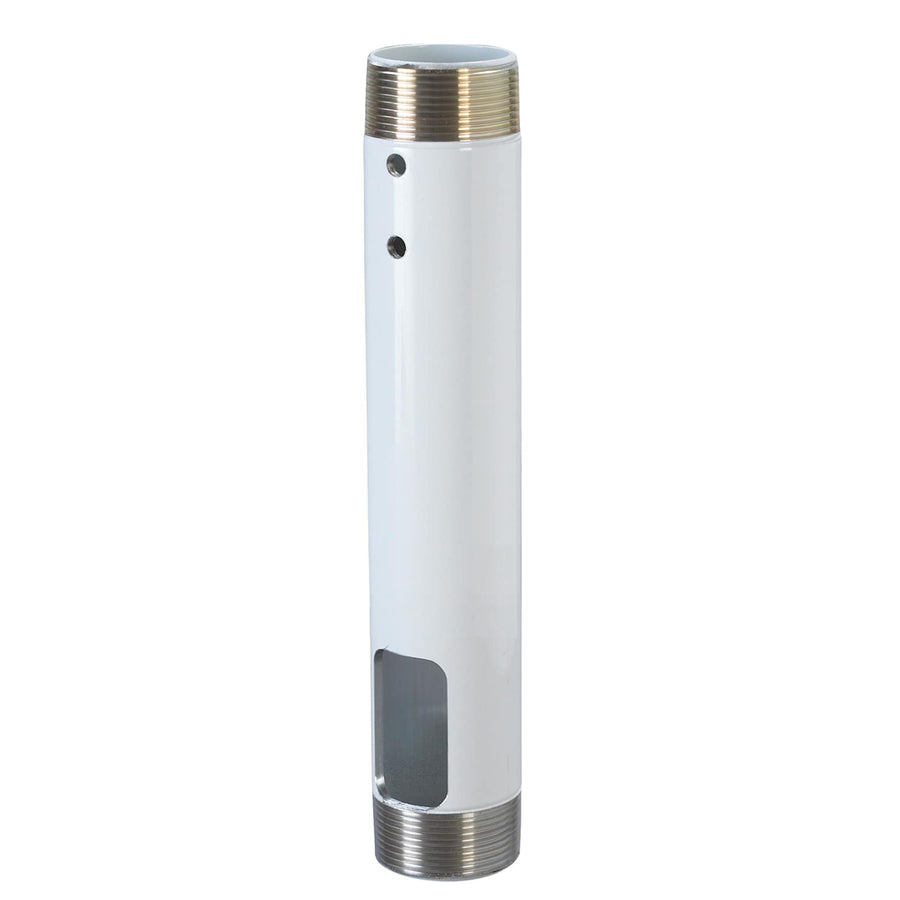

CMS048W, 48 Inch Fixed Extension Column, Pole
48-inch white fixed extension column for lowering projectors to a specific height, 500 lbs capacity, TAA compliant
The Chief CMS048W is a 48-inch (1.2 m) Speed-Connect Fixed Extension Column in a white finish, designed to lower projectors to a precise mounting height. This aluminum extension column provides high structural strength with a weight capacity of 500 lbs (226.8 kg). It features a 1.5" NPT column that is threaded on both ends to allow for secure installation. This component is intended for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. This TAA compliant and UL Listed column is part of the Fixed Extension Series, which offers various length options to accommodate specific installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 4 ft (1.2 m) |
| Height | 48 in (121.9 cm) |
| Shipping Dimensions | 51" x 3" x 3" (129.5 x 7.6 x 7.6 cm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104829 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
What can I use this extension column with?
This column can be used with any Chief 1.5" NPT ceiling plate or other compatible accessories, such as the CMA151 1.5 Inch to 1 Inch NPT Adapter.
How much weight can the CMS048W support?
The CMS048W is rated for a weight capacity of 500 lbs (226.8 kg).
Is this column TAA compliant?
Yes, the CMS048W is TAA compliant and is also UL Listed.
Does this column come in other colors or lengths?
The CMS048W is the white version of this column; other lengths in the Fixed Extension Series include 3 in, 6 in, 12 in, 18 in, 24 in, 36 in, and 60 in.
What documentation is available for submittals?
Technical drawings (PDF), CAD drawings (dwg), and the CMS Series Extension Columns Installation Manual (PDF) are available for this product.
