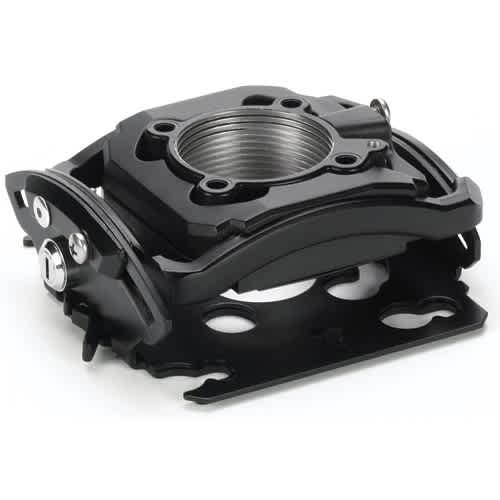

Mini Elite Projector Mount (mount only)-RSMB000S
Ceiling-based projector mount for small models, featuring independent micro-adjustable roll, pitch, and yaw
The Chief RSMB000S is a ceiling-mount top assembly designed specifically for smaller projector models. As a miniature version of the RPA Elite series, this mount offers the same professional adjustment capabilities in a compact form factor. It features independent roll, pitch, and yaw micro-adjustability to ensure precise image alignment after installation. The system includes a 15° pitch adjustment to fine-tune the projection angle. This is the top assembly only; to complete the installation, you must acquire a separate interface bracket. For a universal solution, use the SLMUS interface bracket, or use Chief's MountFinder™ to identify the specific model number required for your projector. This UL Listed mounting solution has a 25 lbs (11.3 kg) weight capacity and is finished in silver.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 9" x 9" x 4" (228.6 x 228.6 x 101.6 mm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Mount only |
All other specifications 5
| Locking Type | B |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| UPC | 841872119830 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
What do I need to buy to complete the installation with the RSMB000S?
The RSMB000S is the mount only. You must also purchase an interface bracket, such as the SLMUS universal bracket, to attach the mount to your specific projector.
Can I adjust the projector image angle once it is mounted?
Yes, this mount provides micro-adjustability for independent roll, pitch, and yaw, allowing for precise image alignment. It also features a 15° pitch adjustment.
What is the maximum weight capacity for this mount?
The RSMB000S is rated for a weight capacity of 25 lbs (11.3 kg).
Is the RSMB000S a universal mount?
It is a solution for universal and custom applications. While the mount itself is the top assembly, the final fitment depends on the interface bracket used with your specific projector model.
Where can I find the technical drawings for this projector mount?
Technical drawings, including the RSM Technical Drawing (PDF) and various CAD drawings for the RSM and SSBU/SSMU interfaces, are available in the product resources.
