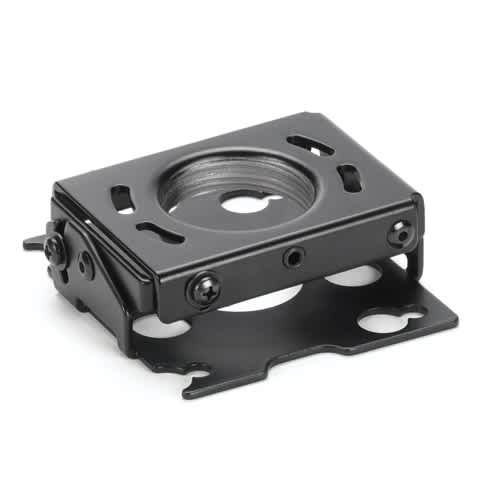

Mini Elite Custom Projector Mount (Lock D)-RSMD349
Custom miniature projector mount for small-format projectors, 25 lbs capacity, with Q-Lock quick release and MicroZone adjustability
The RSMD349 is a custom miniature version of the RPA Elite series, specifically engineered for smaller projector models. This ceiling-mounted solution provides all the core functionality of the full-size Elite line but in a compact form factor that is roughly 1/3 the size. It is designed to manage cable runs through the top of the mount without requiring additional accessories. The integrated Centris Technology facilitates fingertip positioning, allowing the mount to self-adjust to various projector weights. For precise registration, especially during flush mount installations, the MicroZone technology provides micro-adjustable roll, pitch, and yaw, including a 15° pitch adjustment. Security and serviceability are addressed via the Q-Lock Quick Release Lever, which uses an integrated key and lock system with 4 key options to allow for rapid connection or disconnection of the projector.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168487 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMD349 fit my Panasonic projector?
This mount is verified compatible with 14 models from Panasonic, including the PT-EW550, PT-EW550U, PT-EW650, and PT-EW650U.
How do I service a projector mounted with the RSMD349?
The Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector, facilitating easier maintenance and enhanced security.
What kind of adjustments can be made after installation?
The mount features MicroZone adjustments for roll, pitch, and yaw, and includes a 15° pitch adjustment for precise registration.
Does this mount require extra accessories for cable management?
No, it features integrated cable management through the top of the mount so no additional accessories are required for cable routing.
What do I need to purchase separately for specialized mounting?
Depending on the installation, you may need accessories like the CMA165 Internal Joist Ceiling Kit or the CMA370 Unistrut Adapter.
