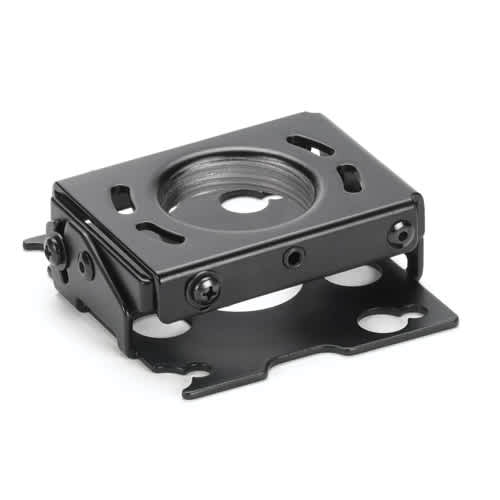

Mini Elite Custom Projector Mount (Lock D)-RSMD345
Custom ceiling projector mount for small projectors, featuring MicroZone adjustments and Q-Lock security.
The Chief RSMD345 is a custom ceiling projector mount specifically designed for smaller projector models. This miniature version of the RPA Elite series provides the same advanced installation features in a compact footprint that is approximately one-third the size of the standard RPA Elite. This unit is built for precision, utilizing Centris Technology to allow for effortless fingertip positioning that self-adjusts to various projector weights. For rapid and accurate projector registration, the mount features MicroZone Adjustments, which are particularly useful during flush mount installations. Integrated cable management runs through the top of the mount, eliminating the need for additional accessories to keep wiring tidy. For enhanced security and easier maintenance, the Q-Lock Quick Release Lever allows for fast connection and disconnection of the projector, supported by an integrated key and lock system with 4 key options. This TAA compliant and UL listed mount is engineered for professional ceiling applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3.75"(336.6 x 336.6 x 95.3 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167848 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMD345 fit my Panasonic projector?
The RSMD345 is verified to fit 65 models from 1 manufacturer, including Panasonic models PT-VMW50, PT-VMW50U, PT-VMW51U, and PT-VMW60.
How much weight can this projector mount hold?
The RSMD345 has a maximum weight capacity of 25 lbs (11.3 kg).
How do I perform maintenance on the projector once it is mounted?
The integrated Q-Lock Quick Release Lever allows you to quickly disconnect the projector for servicing, secured by an integrated key and lock system.
What kind of mounting hardware or accessories are needed for a ceiling install?
While the mount is designed for ceiling application, various accessories like the CMA165 Internal Joist Ceiling Kit or the CMA370 Unistrut Adapter can be used depending on your specific installation environment.
What is the difference between the RSMD345 and the RPA Elite series?
The RSMD345 is a miniature version that provides the same feature set as the RPA Elite but in a footprint that is roughly one-third the size.
