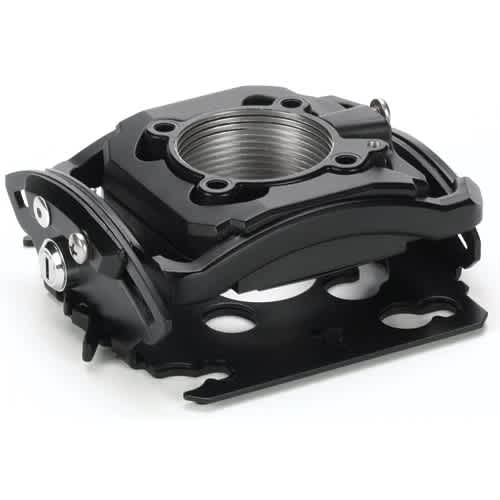

Mini Elite Custom Projector Mount (Lock D)-RSMD284
Custom ceiling mount for small projector models, featuring micro-adjustable roll, pitch, and yaw controls
The RSMD284 is a custom solution designed for smaller projector models, providing the same professional-grade functionality as the larger RPA Elite series but in a compact form factor. This ceiling-applied mount is engineered for precision, allowing for independent roll, pitch, and yaw adjustments to ensure the projector is perfectly aligned with the screen. Because it is a custom interface mount, installers must verify specific projector compatibility before purchase. For complex ceiling installations, a variety of accessories are available, such as the CMA165 Internal Joist Ceiling Kit or the CMA360 C-Clamp. This unit is TAA compliant and UL Listed, making it suitable for many professional and government installation environments. The micro-adjustable capabilities allow for fine-tuning the image projection once the mount is secured to the ceiling structure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872152554 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMD284 fit my projector?
This is a custom interface mount. It is verified against 105 display models from 4 manufacturers, including NEC models NP-M230X and NP-M260W, EIKI EK-125W, DUKANE 6662WUSSB, and RICOH PJX5371N.
What kind of ceiling mounting options are available?
The RSMD284 is designed for ceiling applications. You can expand the installation with accessories like the CMA165 Internal Joist Ceiling Kit, the CMA370 Unistrut Adapter, or the CMS440P2 SpeedConnect Suspended Ceiling Kit.
Can I adjust the projector image once it is mounted?
Yes. The mount features micro-adjustable controls for independent roll, pitch, and yaw, allowing you to correct the image orientation after the unit is installed on the ceiling.
What is the maximum weight the RSMD284 can support?
The RSMD284 has a maximum weight capacity of 25 lbs (11.3 kg).
Which documents do I need for submittals or installation?
For technical details, you can refer to the RSM Technical Drawing (PDF), and for installation guidance, use the RSM Installation Manual (PDF).
