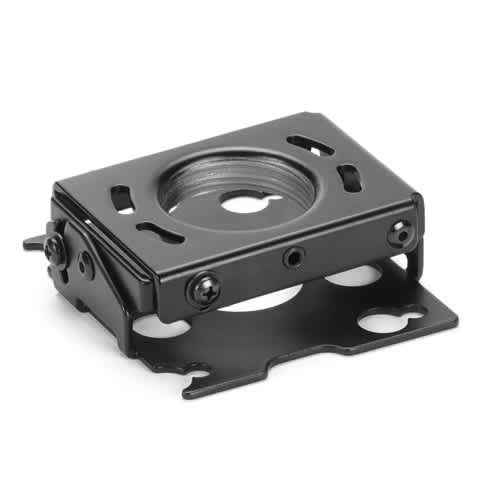

Mini Elite Custom Projector Mount (Lock C)-RSMC349
Custom ceiling projector mount for small-format models, featuring MicroZone adjustments and Q-Lock security
The Chief RSMC349 is a custom miniature version of the RPA Elite series, specifically designed for smaller projector models. This ceiling-applied mount is roughly 1/3 the size of the standard RPA Elite but retains the same professional feature set. It is designed for precise registration through MicroZone adjustments, which include independent roll, pitch, and yaw for micro-adjustable positioning. Even in flush mount installations, these adjustments allow for fast and accurate alignment. For installation and maintenance, the mount utilizes Centris Technology to enable effortless fingertip positioning, automatically adjusting to support varying projector weights. Integrated cable management is built directly through the top of the mount, removing the need for additional accessories. The Q-Lock Quick Release Lever system allows for fast connection and disconnection of the projector for servicing, and includes an integrated key and lock system with 4 key options for enhanced security. This TAA compliant and UL Listed mount is capable of supporting a weight capacity of 25 lbs (11.3 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | C |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168470 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMC349 fit my Panasonic projector?
This mount is verified for 4 Panasonic models, including the PT-EW550, PT-EW550U, PT-EW650, and PT-EW650U.
What is the maximum weight capacity for this mount?
The RSMC349 has a maximum weight capacity of 25 lbs (11.3 kg).
How do I adjust the projector once it is mounted?
The mount features MicroZone adjustments for independent roll, pitch, and yaw, as well as Centris Technology for fingertip positioning.
Does this mount include security features?
Yes, it features a Q-Lock Quick Release Lever with an integrated key and lock system that offers 4 key options.
What additional hardware is needed for a suspended ceiling installation?
You may need accessories such as the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit or a CMS492CP2 Storage Box.
