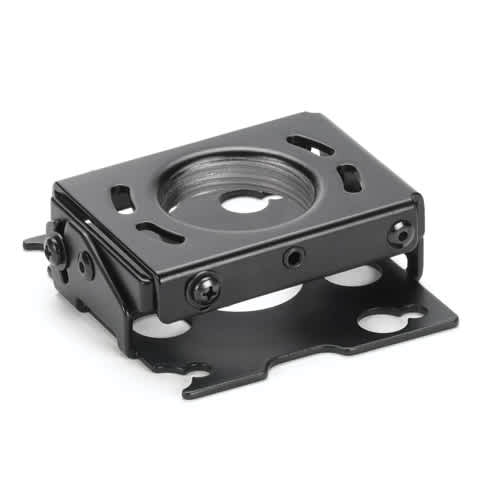

Mini Elite Custom Projector Mount (Lock C)-RSMC345
Custom ceiling mount for smaller projectors with MicroZone adjustability and Q-Lock quick release security
The Chief RSMC345 is a custom miniature version of the RPA Elite series, specifically designed for smaller projector models. This ceiling-mount solution provides a compact footprint that is approximately 1/3 the size of the standard RPA Elite, while retaining the same advanced adjustment capabilities. It features Centris Technology, which allows for effortless fingertip positioning and automatically adjusts to accommodate different projector weights. For precise registration, especially in flush mount installations, the integrated MicroZone adjustments allow for rapid, fine-tuned alignment. This unit includes integrated cable management through the top of the mount to keep installations clean without the need for extra accessories. Security and serviceability are handled by the Q-Lock Quick Release Lever, which provides a fast connect/disconnect for servicing the projector. This system features an integrated key and lock system with 4 key options for enhanced security. This TAA-compliant and UL-listed mount supports a weight capacity of 25 lbs (11.3 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 13.25" x 13.25" x 3.75"(336.6 x 336.6 x 95.3 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Locking Type | C |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167831 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMC345 fit my Panasonic projector?
This mount is verified against 65 device models from 1 manufacturer, including Panasonic models PT-VMW50, PT-VMW50U, PT-VMW51U, and PT-VMW60.
How do I adjust the projector once it is mounted?
The mount features MicroZone Adjustments for precise registration and Centris Technology for effortless fingertip positioning and self-adjustment to different projector weights.
Can I quickly remove the projector for maintenance?
Yes, the Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector, featuring an integrated key and lock system with 4 key options.
What is the pitch adjustment range on this mount?
The RSMC345 provides a pitch adjustment of 15° and offers independent roll-pitch-yaw with micro-adjustability for precise alignment.
Is the RSMC345 suitable for TAA compliance requirements?
Yes, this projector mount is TAA compliant and is UL listed.
