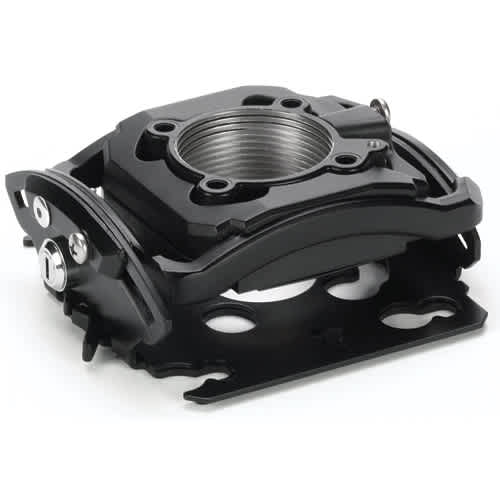

Mini Elite Custom Projector Mount (Lock C)-RSMC266
Custom ceiling mount for miniature projector models, featuring independent micro-adjustable roll, pitch, and yaw
The Chief RSMC266 is a custom miniature version of the RPA Elite series, specifically designed to accommodate smaller projector models. This ceiling-application mount provides the same advanced adjustment capabilities as the full-sized Elite mounts but in a significantly reduced footprint. It features micro-adjustable independent roll, pitch, and yaw, allowing installers to achieve precise image alignment even with compact hardware. This SKU utilizes a custom interface type and is designed for a Lock C application. It is UL Listed for safety and reliability. To complete the installation in various environments, this mount is compatible with a wide range of accessories, including the CMA362 C-Clamp, CMS380 Truss Clamp, or CMA165 Internal Joist Ceiling Kit for specialized mounting requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9" x 9" x 4.5" (228.6 x 228.6 x 114.3 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | C |
| Solution Type | Custom |
| TAA Compliant | No |
| UPC | 841872147802 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMC266 fit my projector?
This custom mount is verified against 120 display models from 8 manufacturers, including EPSON BrightLink 775F, HITACHI CP-A221N, and SHURE MXA910B.
What accessories are needed for a ceiling installation?
Depending on the mounting surface, you may require the CMA165 Internal Joist Ceiling Kit, the CMA370 Unistrut Adapter, or the CMS380 Truss Clamp.
How much weight can this mount support?
The RSMC266 has a maximum weight capacity of 25 lbs (11.3 kg).
Can I adjust the projector's orientation after mounting?
Yes, the mount features micro-adjustable independent roll, pitch, and yaw to facilitate precise image positioning.
Which documentation is required for submittals?
Installers can refer to the RSM Technical Drawing (PDF) for general dimensions or the RSM Installation Manual (PDF) for setup guidance.
