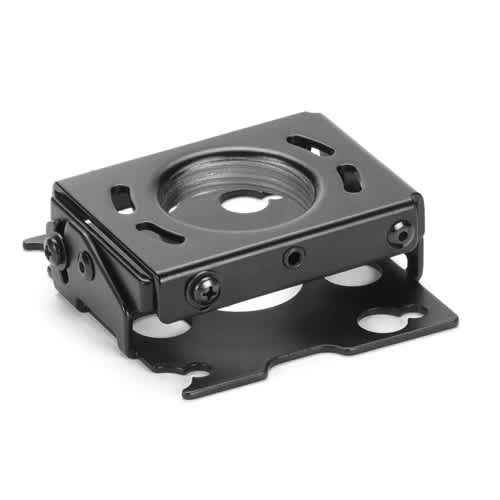

Mini Elite Custom Projector Mount (Lock B)-RSMB345
Custom ceiling mount for small projectors, featuring 25 lbs capacity and Q-Lock security release
The RSMB345 is a custom-engineered Mini Elite projector mount designed specifically for smaller projector models. While maintaining the core functionality of the larger RPA Elite series, this miniature version is approximately 1/3 the size of its larger siblings. It is designed for ceiling applications and supports a weight capacity of 25 lbs (11.3 kg). This mount features Centris Technology, which allows for effortless fingertip positioning by automatically self-adjusting to accommodate different projector weights. For precise registration, the MicroZone Adjustments allow for micro-adjustable pitch, roll, and yaw, which is particularly useful during flush mount installations. The integrated cable management system runs through the top of the mount to maintain a clean installation without requiring additional accessories. For service and security, the Q-Lock Quick Release Lever allows for the rapid connection and disconnection of the projector. This system includes an integrated key and lock mechanism with four key options to enhance site security.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3.75"(336.6 x 336.6 x 95.3 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167824 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMB345 fit my projector?
This is a custom-interface mount. It is verified against 65 models from 1 manufacturer, including Panasonic models PT-VMW50, PT-VMW50U, PT-VMW51U, and PT-VMW60.
How do I service the projector once it is mounted?
The Q-Lock Quick Release Lever allows you to quickly connect or disconnect the projector for servicing, and the integrated lock provides enhanced security.
What adjustments can I make after installation?
The mount features MicroZone Adjustments for micro-adjustable independent roll, pitch, and yaw, including a 15° pitch adjustment range.
What mounting hardware or accessories do I need?
The mount is a ceiling application solution. Depending on your installation, you may require accessories like the CMA165 Internal Joist Ceiling Kit or the CMA385 Internal Joist Mount.
Is this mount TAA compliant and UL listed?
Yes, the RSMB345 is both TAA compliant and UL listed for professional installations.
