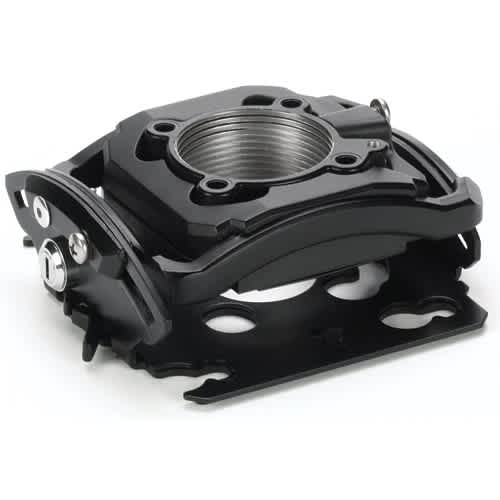

Mini Elite Custom Projector Mount (Lock B)-RSMB284
Custom miniature projector mount for smaller models, supporting up to 25 lbs with micro-adjustable roll, pitch, and yaw
The RSMB284 is a custom miniature version of the RPA Elite series, specifically engineered for smaller projector models. This ceiling-mounted solution provides a compact footprint while maintaining the professional-grade adjustability found in larger Elite mounts. It features micro-adjustable, independent roll, pitch, and yaw to ensure precise alignment during installation and servicing. This specific SKU is a custom interface type utilizing Locking Type B. With a weight capacity of 25 lbs (11.3 kg), it is designed to handle light-to-midweight projection units. The RSMB284 is TAA compliant and UL Listed, making it suitable for various professional installation environments. Because this is a custom solution, installers should verify device compatibility with specific manufacturer models before purchase.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | B |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872152530 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Extension Column and Ceiling Mount Kit
CMS443$164.80
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMB284 fit my specific projector?
This is a custom mount. It is verified against 105 device models from 4 manufacturers, including the NEC NP-M260W, EIKI EK-125W, DUKANE 6652WSSB, and RICOH PJX5371N.
What can I use to extend or adapt this mount?
You can use accessories like the CMS443 Extension Column and Ceiling Mount Kit or the CMA360 I-Beam Clamp to adapt the installation.
Is this mount suitable for ceiling applications?
Yes, the RSMB284 is specifically designed for ceiling applications and offers independent micro-adjustments for precise positioning.
What is the maximum weight capacity for this mount?
The RSMB284 supports a maximum weight capacity of 25 lbs (11.3 kg).
Which documents are available for installation and submittals?
Installers can access the RSM Technical Drawing (PDF), the RSM Installation Manual (PDF), or the RSMD296 CAD Drawing (dwg) for submittals.
