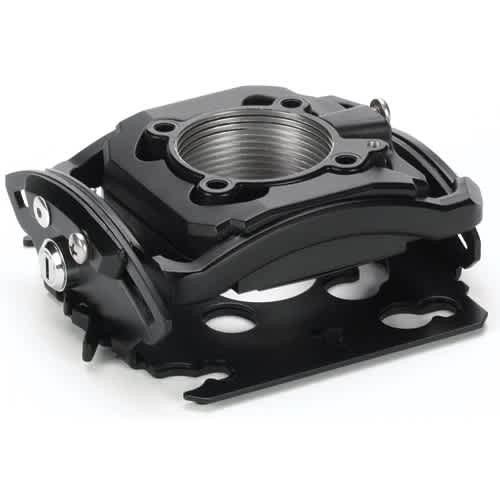

Mini Elite Custom Projector Mount (Lock B)-RSMB266
Custom ceiling mount for small projector models, featuring micro-adjustable roll, pitch, and yaw with a 25 lbs capacity
The RSMB266 is a custom miniature version of the RPA Elite series, specifically designed for smaller projector models. This Mini Elite mount provides a compact solution for ceiling applications while retaining essential positioning capabilities. It features independent micro-adjustable roll, pitch, and yaw to ensure precise alignment during installation and fine-tuning. The mount offers a 15° pitch adjustment to help achieve the correct projection angle. It is built with a custom interface type and utilizes a Lock B mechanism. This unit is UL Listed and has a weight capacity of 25 lbs (11.3 kg). To accommodate various ceiling environments, it is compatible with a wide range of accessories, such as the CMA165 Internal Joist Ceiling Kit or the CMA370 Unistrut Adapter. Because this is a custom solution, installers should verify compatibility with their specific projector manufacturer and model before purchase.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 9" x 9" x 4.5" (228.6 x 228.6 x 114.3 mm) |
| Shipping Weight | 2.64 lbs (1.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Locking Type | B |
| Solution Type | Custom |
| TAA Compliant | No |
| UPC | 841872147796 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMB266 fit my specific projector?
This mount is a custom solution for smaller projector models. It is verified against 120 devices from 8 manufacturers, including the EPSON BrightLink 775F, SHURE MXA910AL, and SENNHEISER TEAM CONNECT 2.
What accessories are needed for ceiling installation?
Depending on your ceiling type, you may need accessories like the CMA165 Internal Joist Ceiling Kit, the CMA160 Electrical Storage Enclosure, or the CMA370 Unistrut Adapter.
How much weight can the RSMB266 hold?
The RSMB266 has a maximum weight capacity of 25 lbs (11.3 kg).
Does this mount allow for fine-tuning after installation?
Yes, the mount features micro-adjustable roll, pitch, and yaw, as well as 15° of pitch adjustment, to ensure the projector is perfectly aligned.
What documentation is available for submittals?
Installers can access the RSM Technical Drawing (PDF), the RSM Installation Manual (PDF), or the RSMD296 CAD Drawing (dwg) for project planning.
