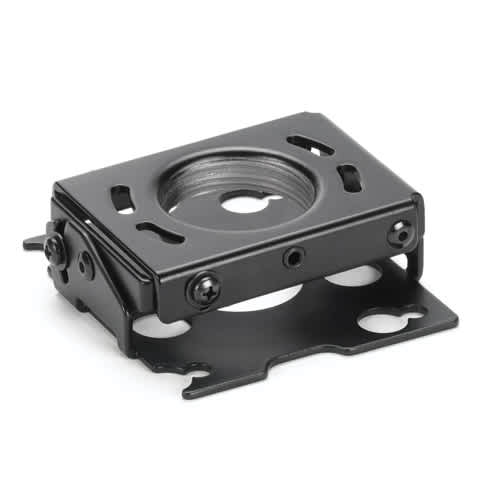

Mini Elite Custom Projector Mount (Lock A)-RSMD352
Custom ceiling mount for small projectors, featuring Centris Technology and Q-Lock quick-release security
The RSMD352 is a custom miniature version of the RPA Elite series, specifically designed to serve smaller projector models. This compact design is approximately 1/3 the size of the RPA Elite while retaining all essential professional features. For rapid and precise registration, especially in flush mount installations, the integrated MicroZone Micro-Adjustments allow for fine-tuned positioning. The mount utilizes Centris Technology, which facilitates effortless fingertip positioning and automatically self-adjusts to accommodate various projector weights. Integrated cable management is built directly through the top of the mount, eliminating the need for additional accessories for wire routing. This SKU features the Q-Lock Quick Release Lever, which allows for the rapid connection and disconnection of the projector for servicing. For enhanced security, the system includes an integrated key and lock system with 4 key options. This TAA compliant and UL listed ceiling mount supports a weight capacity of 25 lbs (11.3 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 6.5 lbs (3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872170008 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMD352 fit my EIKI projector?
This mount is verified for 4 EIKI models, including the EK-300W, EK-301W, EK-302X, and EK-303U.
How is the projector serviced on this mount?
The Q-Lock Quick Release Lever allows you to quickly connect or disconnect the projector for maintenance or security.
What mounting options are available for ceiling installation?
The RSMD352 can be paired with various accessories such as the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit or the CMA370 Unistrut Adapter.
Does this mount support weight adjustments?
Yes, the Centris Technology enables the mount to self-adjust to support different projector weights.
Is this mount TAA compliant?
Yes, the RSMD352 is TAA compliant and is UL Listed.
