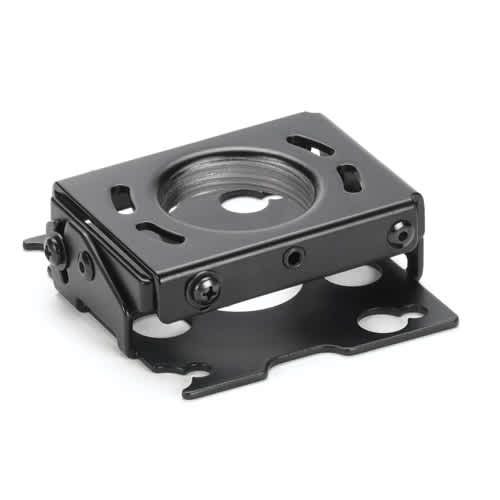

Mini Elite Custom Projector Mount (Lock A)-RSMC352
Custom ceiling mount for small projector models, featuring independent roll-pitch-yaw micro-adjustments and a 25 lbs capacity
The RSMC352 is a custom miniature version of the RPA Elite series, specifically engineered for smaller projector models. This Mini Elite Custom Projector Mount (Lock A) provides the same sophisticated adjustment capabilities as the full-sized series but in a reduced footprint, making it an efficient solution for compact installation environments. This ceiling-mount solution features independent roll, pitch, and yaw micro-adjustments, allowing for precise optical alignment. The pitch adjustment provides a 15° range. It is designed with a custom interface type and a Lock C mechanism for secure integration. This TAA compliant and UL Listed mounting system supports a weight capacity of 25 lbs (11.3 kg). For specialized ceiling installations, the RSMC352 is compatible with various accessories, including the CMA165 Internal Joist Ceiling Kit and the CMS443 Extension Column and Ceiling Mount Kit. This mount is a specific custom solution, meaning installers should verify the interface type against the projector before installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 16" x 12" x 4"(406.4 x 304.8 x 101.6 mm) |
| Shipping Weight | 6.5 lbs (3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Locking Type | C |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872169996 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMC352 fit my EIKI projector?
This mount is verified against 9 display models from 1 manufacturer, including EIKI models EK-300W, EK-301W, EK-302X, and EK-303U.
What accessories are needed for a ceiling installation?
Depending on your ceiling type, you may need the CMA165 Internal Joist Ceiling Kit, the CMA160 Electrical Storage Enclosure, or the CMS443 Extension Column and Ceiling Mount Kit.
How much weight can this custom mount hold?
The RSMC352 has a maximum weight capacity of 25 lbs (11.3 kg).
What level of adjustment does the RSMC352 offer?
The mount provides micro-adjustable movement through independent roll, pitch, and yaw, with a pitch adjustment range of 15°.
Is this mount suitable for TAA compliant projects?
Yes, the RSMC352 is TAA compliant and is UL Listed.
