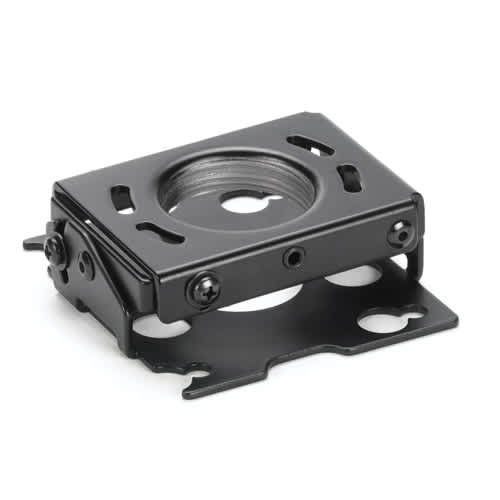

Mini Elite Custom Projector Mount (Lock A)-RSMA352
Custom ceiling mount for small projector models, featuring Q-Lock security and MicroZone precision adjustments
The RSMA352 is a custom projector mount designed specifically for smaller projector models. This miniature version of the RPA Elite series is approximately 1/3 the size of the standard Elite mount while retaining the same core functionality. It is engineered for ceiling applications and features an integrated Q-Lock Quick Release Lever (Type A), which facilitates rapid connection and disconnection for servicing the unit. Security is enhanced via an integrated key and lock system with four key options. Installation and alignment are streamlined through Centris Technology, which allows for effortless fingertip positioning and self-adjusts to accommodate various projector weights. For precise registration, especially in flush mount installations, the mount utilizes MicroZone Adjustments for fast, accurate positioning. The RSMA352 includes built-in cable management through the top of the mount to prevent the need for additional accessories. This TAA compliant and UL listed solution provides professional-grade precision for compact projection setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 16" x 12" x 4"(406.4 x 304.8 x 101.6 mm) |
| Shipping Weight | 6.5 lbs (3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | A |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872169972 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMA352 fit my projector?
This is a custom mount verified for 9 specific EIKI models, including the EK-300W, EK-301W, EK-302X, and EK-303U.
What is the weight capacity of this mount?
The RSMA352 is rated for a weight capacity of 25 lbs (11.3 kg).
How do I service the projector once it is mounted?
The Q-Lock Quick Release Lever allows for quick connection and disconnection, and the integrated lock system provides enhanced security during service.
Does this mount require additional cable management accessories?
No, this mount features integrated cable management through the top of the mount to handle cabling without extra parts.
What is the difference between the RSMA352 and the standard RPA Elite?
The RSMA352 is a custom miniature version that is approximately 1/3 the size of the standard RPA Elite series, designed specifically for smaller projector models.
