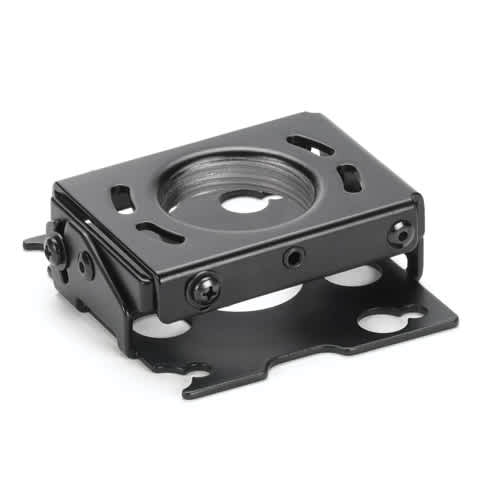

Mini Elite Custom Projector Mount (Lock A)-RSMA345
Custom ceiling mount for small projectors with a 25 lbs capacity and integrated cable management
The RSMA345 is a custom miniature version of the RPA Elite mount, specifically sized for smaller projector models. This ceiling-application mount provides a compact footprint that is roughly one-third the size of the standard RPA Elite series while retaining full feature sets. It is built for precise installation through MicroZone Adjustments, which allow for fast and accurate projector registration, including in flush mount scenarios. Integrated Centris Technology facilitates fingertip positioning and automatically adjusts to support various projector weights. For security and maintenance, the Q-Lock Quick Release Lever (Lock A) allows for rapid connection or disconnection of the unit, secured by an integrated key and lock system with 4 key options. This TAA compliant and UL listed mount also features integrated cable management through the top of the mount, eliminating the need for additional accessories. The mount supports a weight capacity of 25 lbs (11.3 kg) and offers 15° of pitch adjustment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 13.25" x 13.25" x 3.75"(336.6 x 336.6 x 95.3 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Locking Type | A |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167817 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSMA345 fit my Panasonic projector?
This mount is verified for use with Panasonic models including the PT-VMW50, PT-VMW50U, PT-VMW51U, and PT-VMW60.
How do I service a projector mounted with the RSMA345?
The Q-Lock Quick Release Lever (Lock A) allows you to quickly connect or disconnect the projector for servicing using the integrated key and lock system.
What kind of adjustments can I make once installed?
The mount features micro-adjustable independent roll, pitch, and yaw, including a 15° pitch adjustment for precise registration.
Does this mount require extra accessories for cable management?
No, this model includes integrated cable management through the top of the mount so you do not need to purchase additional components.
What is the weight limit for this custom mount?
The RSMA345 is rated for a maximum weight capacity of 25 lbs (11.3 kg).
