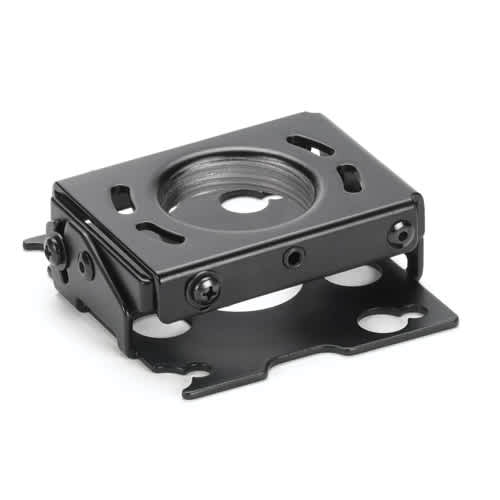

Mini Custom RPA Projector Mount-RSA357
Custom ceiling mount for specific projectors, featuring independent roll, pitch, and yaw adjustments and a compact design
The RSA357 is a custom RPA projector mount designed to provide a precise, streamlined installation for specific projector models. This compact solution is approximately 1/3 smaller than the standard RPA series while retaining essential professional features. It is engineered for ceiling applications and provides independent roll, pitch, and yaw adjustments, allowing for rapid and accurate projector registration on a job site. To ensure the security of the installation, the unit features All-Points Security steel-into-steel locking hardware at every connection point to protect against theft. For maintenance, the design allows for quick connect/disconnect, providing convenient access to lamps and filters on most projectors without losing the preset alignment. The RSA357 is TAA compliant and UL Listed. For installation flexibility, this mount supports multiple configurations, including flush mounting directly to a ceiling, utilizing 0.25" threaded rods, or mounting to a 1.5" NPT column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3"(336.6 x 336.6 x 76.2 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168821 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSA357 fit my Epson projector?
This custom mount is verified for use with several Epson models, including the EH-TW7300, EH-TW7400, EH-TW8300, and EH-TW8300W.
How does the RSA357 differ from the standard RPA mount?
The RSA357 features a compact design that is 1/3 smaller than the standard RPA series while maintaining the same professional adjustment features.
Can I adjust the projector once it is mounted?
Yes, the mount provides independent roll, pitch, and yaw adjustments to facilitate quick and precise projector registration.
What mounting options are available for ceiling installs?
You can perform a flush mount to the ceiling, use 0.25" threaded rods, or mount the unit to a 1.5" NPT column.
What accessories are required for column mounting?
To use a 1.5" NPT column, you may need the CMA151 1.5 Inch to 1 Inch NPT Adapter.
