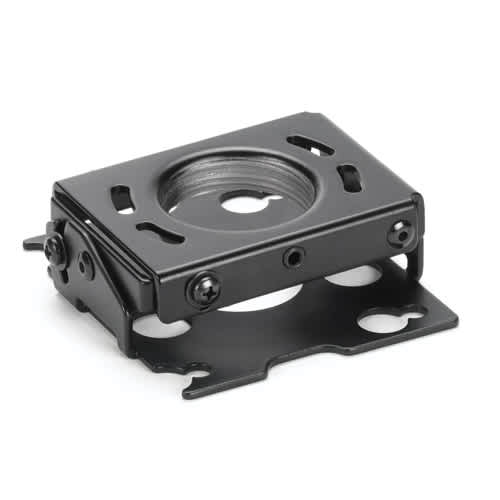

Mini Custom RPA Projector Mount-RSA221
Custom ceiling mount for projectors, featuring independent roll, pitch, and yaw adjustability and a 25 lbs weight capacity
The RSA221 is a custom RPA projector mount designed for ceiling installations where precise positioning is critical. This custom solution is engineered to accommodate specific projector models to ensure a quick and efficient installation process. For installers requiring fine-tuned alignment, the RSA221 offers independent roll, pitch, and yaw adjustability, allowing the projector to be oriented perfectly with the screen or surface. This mount is built for professional environments and features a 25 lbs (11.3 kg) weight capacity. It is UL Listed and TAA compliant, meeting rigorous safety and procurement standards. Because this is a custom interface solution, installers should verify exact compatibility for their specific equipment before deployment to ensure a successful fit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 3.35 lbs (1.5 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872129969 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSA221 fit my Epson projector?
This specific SKU is a custom mount. It is verified to fit Epson models including BrightLink 425Wi, BrightLink 430W, BrightLink 430i, and BrightLink 435W.
What type of mounting application is this for?
The RSA221 is designed specifically for ceiling applications to provide a secure, elevated projector position.
Can I adjust the projector's angle after it is mounted?
Yes, the mount features independent roll, pitch, and yaw adjustability to allow for precise orientation once installed.
What is the maximum weight this mount can hold?
The RSA221 has a rated weight capacity of 25 lbs (11.3 kg).
Which documents should I use for submittals or installation?
You can access the RSA Technical Drawing (PDF), the RSA Installation Manual (PDF), or the RSA Catalog Page (PDF) for project submittals.
