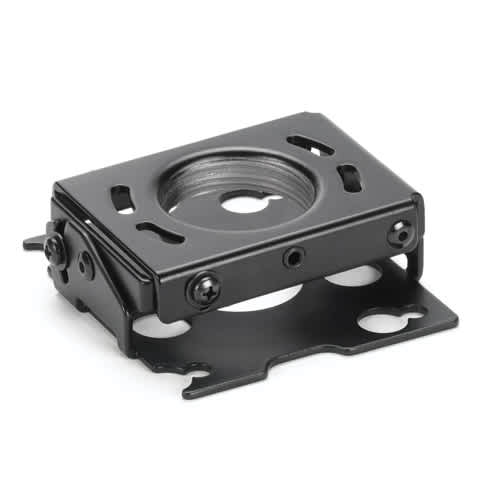

Mini Custom RPA Projector Mount-RSA203
Custom RPA projector mount for ceiling installation, featuring independent roll, pitch, and yaw adjustment
The Chief RSA203 is a custom RPA projector mount designed to provide a precise solution for specific projector requirements. This ceiling-application mount is built to facilitate a quick and easy installation process by being tailored to the exact dimensions and interface of your specific hardware. It features independent roll, pitch, and yaw adjustability, allowing for fine-tuned alignment once the unit is mounted. This TAA compliant and UL Listed solution is engineered for professional integration. To complete the installation, consider compatible accessories such as the CMA385 Internal Joist Mount or the CMA370 Unistrut Adapter depending on your ceiling structure. For power management, the CMA502 Single Electric Outlet Coupler is an available option.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872129808 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
What kind of adjustability does the RSA203 offer?
The RSA203 features independent roll, pitch, and yaw adjustment to ensure your projector is perfectly aligned during installation.
Is the RSA203 TAA compliant?
Yes, this projector mount is TAA compliant and is also UL Listed.
What is the weight capacity of this mount?
The RSA203 is designed to support a weight capacity of 25 lbs (11.3 kg).
What mounting accessories are compatible with the RSA203?
Depending on your ceiling, you can use the CMA165 Internal Joist Ceiling Kit, the CMA370 Unistrut Adapter, or the CMA360 I-Beam Clamp.
Which installation documents are available for the RSA203?
You can access the RSA Installation Manual (PDF) and the RSA Technical Drawing (PDF) to assist with your submittals and installation.
