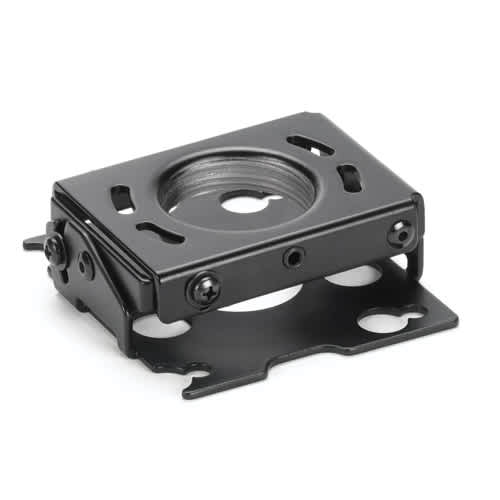

Mini Custom RPA Projector Mount-RSA201
Custom ceiling mount for projectors, featuring independent roll, pitch, and yaw adjustment for precise alignment
The Chief RSA201 is a custom RPA projector mount designed for ceiling applications. This solution is engineered to provide a quick and easy installation by being tailored to fit a specific projector model. The mount features independent roll, pitch, and yaw adjustability, allowing installers to achieve precise alignment once the unit is positioned. It is built with a custom interface type to accommodate the specific requirements of the intended device. This TAA compliant and UL Listed mount supports a weight capacity of up to 25 lbs (11.3 kg). To ensure a complete installation, this mount may require additional components such as a CMA165 Internal Joist Ceiling Kit or a CMA360 I-Beam Clamp depending on the specific ceiling structure encountered on-site.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 5 lbs (2.3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872129785 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RSA201 fit my Sony projector?
The RSA201 is a custom solution. This specific SKU is verified for SONY models including VPL-CH350, VPL-CH355, VPL-CH370, and VPL-CH375.
What mounting hardware is needed for different ceiling types?
Depending on your installation, you may need accessories such as the CMA165 Internal Joist Ceiling Kit, the CMA360 I-Beam Clamp, or the CMA370 Unistrut Adapter.
Can I adjust the projector's angle after it is mounted?
Yes, this mount provides independent adjustability for roll, pitch, and yaw to facilitate precise image alignment.
What is the maximum weight this mount can support?
The RSA201 has a maximum weight capacity of 25 lbs (11.3 kg).
Does this mount require a specialized power solution?
For power integration, you can add a CMA502 Single Electric Outlet Coupler or a CMA504 Dual Electric Outlet Coupler to your installation.
