LVS1UP, ConnexSys™ Video Wall Portrait Mounting System with Rails
Portrait orientation video wall mount for 40"–80" displays, 150 lbs capacity, with micro-adjustability and lateral shift

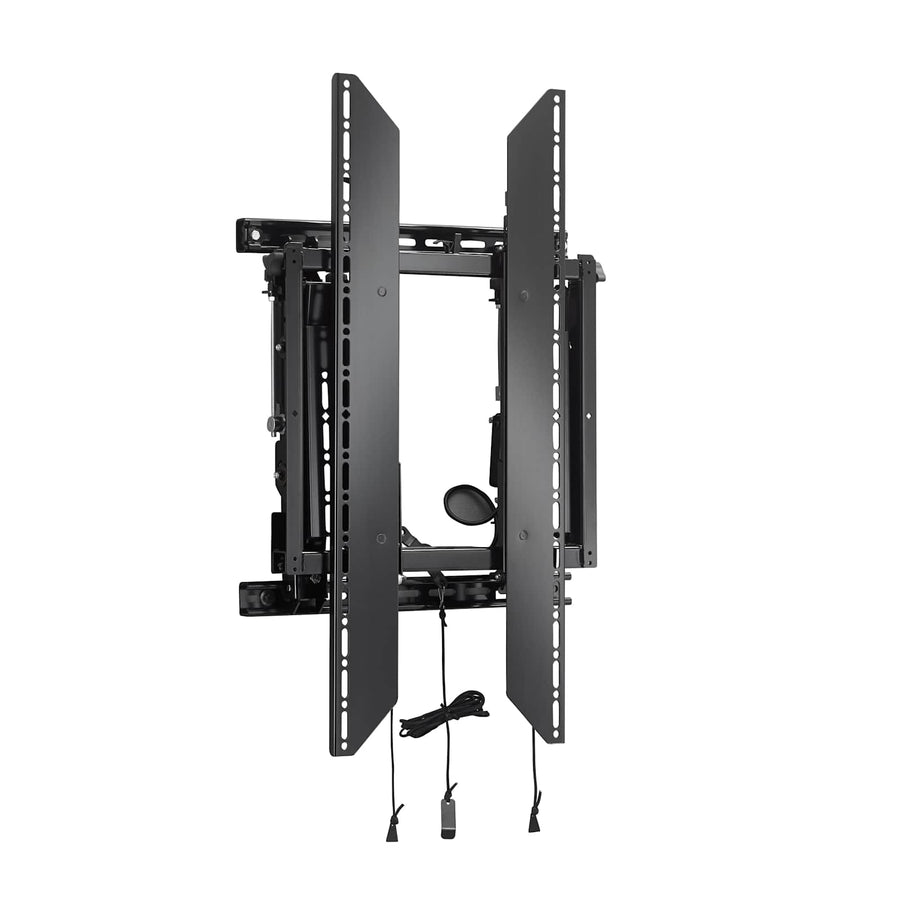

The Chief LVS1UP is a ConnexSys™ Video Wall Mounting System component designed for portrait orientation installations. This universal solution is engineered to solve common video wall challenges regarding alignment, serviceability, and structural rigidity. Specifically built for a single display within a larger array, this mount utilizes a rail-based system that allows installers to level an entire row simultaneously using strut channel to connect multiple units. This portrait-specific mount accommodates displays from 40" to 80" (1016–2032 mm) with a VESA pattern range of 200 x 100mm to 800 x 400mm. It supports a weight capacity of up to 150 lbs (68 kg) per display and provides critical fine-tuning through height adjustment, lateral shift, and micro-adjustability. For installers managing large-scale arrays, this system facilitates easier servicing and more precise alignment than traditional individual mounts. The unit is UL Listed and features a black finish, maintaining a professional appearance in any installation environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.1 in (10.4 cm) |
| Height | 32.5 in (82.6 cm) |
| Minimum Depth | 4 in (101.6 mm) |
| Overall Dimensions | 32.5 x 19.5 x 4.1" (825 x 496 x 104 mm) |
| Shipping Dimensions | 35" x 28" x 4" (889 x 711 x 102 mm) |
| Shipping Weight | 42 lbs (19.1 kg) |
| Typical Screen Size | 40" - 80" (1016mm - 2032mm) |
| Weight Capacity | 150150 lbs (68 kg) |
All other specifications 14
| Width | 19.5 in (49.5 cm) |
| Adjustability | Extension, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +4°-2.5° |
| UPC | 841872161167 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| With Rails | Yes |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
FHB5164
FHB5164$91.20
ConnexSys™ Video Wall Strut Channel 72 Inch
CSAS072$144.80
ConnexSys™ Video Wall Strut Channel 60 Inch
CSAS060$120.80
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
ConnexSys™ Device Holder
CSA100$93.60
Side Cover Kit with ConnexSys™ Brackets, 6 Inch Depth
CSACK06B$441.60
ConnexSys™ Cable Quick Ties (25 PK)
CSACLIPS$42.40
Verified fitment
Questions about this part
Will the LVS1UP fit my specific display model?
It is verified against 8,064 display models from 325 manufacturers, including Samsung 400BX, Sony 50BZ30P, LG 100QNED8, and Panasonic LH86QM1KD.
What else do I need to complete the ConnexSys installation?
You will need ConnexSys™ Strut Channels, such as the CSAS072 (72 inch) or CSAS060 (60 inch), to connect these mounts and level the rows.
How much can I adjust the display once it is mounted?
The mount provides tilt adjustment from +4° to -2.5°, alongside height, lateral, and micro-adjustments for precise alignment.
What are the mounting requirements for this wall mount?
This is a wall application requiring a VESA mounting pattern between 200 x 100mm and 800 x 400mm.
Is this part different from the landscape version?
Yes, the LVS1UP is specifically configured for portrait orientation, whereas the series also includes landscape options.
