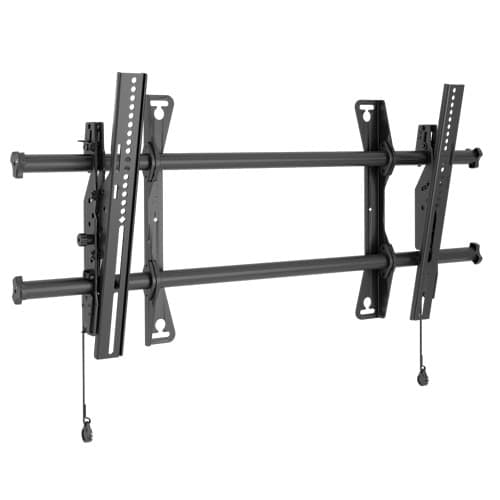

Large Fusion® Tilt Wall Mount
Large-format tilt wall mount for 42"- 86" displays with 200 lbs capacity and Centris tilt
The Chief LTA1U is a large-format Fusion® tilt wall mount designed to solve common installation challenges for top-mounted flat panels. Engineered with installer feedback in mind, this series features Centris tilt and ClickConnect Latching to increase installation speed and stability. This mount provides a low-profile mounting solution for large displays in digital signage, hospitality, transportation, and corporate environments. It supports a typical screen size range of 42"- 86" (1067mm - 2184mm) and can accommodate a maximum screen thickness of 6 in (152.4 mm). The LTA1U offers lateral shift and tilt adjustability, including a tilt range of +2° / -12° and 1 in (25.4 mm) of manual height adjustment. This universal solution is built for landscape orientation and carries UL Listed and OSHPD certifications. For secure installations, the LTA1U is compatible with the PAC138 ClickConnect Padlock.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 16.5 in (41.9 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Overall Dimensions | 16.5" x 34.75" x 2" (419 x 883 x 51mm) |
| Shipping Weight | 18.41 lbs (8.4 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
All other specifications 14
| Wall Stud Compatibility | 16" - 32" (406mm - 813mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 34.75 in (88.3 cm) |
| Adjustability | Lateral ShiftTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +2° / -12° |
| UPC | 841872163727 |
| VESA Mounting Pattern | 100 x 100mm - 878 x 500mm |
| Certifications | OSHPDUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
PAC526FWP2$397.60
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
FCK008, Fusion® Connector Kit - 8 Inch
FCK008$50.40
FCK000, Fusion® Connector Union
FCK000$30.40
FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
Fusion® Pull Out Accessory
FCAV1U$412.00
PAC526FC, Large In-Wall Storage Box with Flange and Cover
PAC526FC$200.80
FCA112 Fusion® Secure CPU/Media Player Adapter
FCA112$111.20
Verified fitment
Questions about this part
Will the Chief LTA1U fit my display?
Yes, this mount is verified against 9,205 display models from 345 manufacturers. Examples include Sony 55BZ30P, Philips 30PF9946, Hisense 100QD6QF, Panasonic LH86QM1KD, LG 100QNED8, and Sharp 40BG3E.
What is the VESA pattern and weight capacity for the LTA1U?
The LTA1U supports VESA mounting patterns from 100 x 100mm to 878 x 500mm and has a weight capacity of 200 lbs (90.7 kg).
What tools do I need for the LTA1U installation?
Refer to the LTA1U Installation Manual (PDF) for a complete list of the specific tools required to complete the installation.
How much adjustment does the tilt and height offer?
The mount provides a tilt range of +2° / -12° and allows for 1 in (25.4 mm) of manual height adjustment to ensure proper display positioning.
What accessories are compatible with the Fusion® Tilt Wall Mount?
The LTA1U is compatible with several accessories including the FCA820 Fusion® Center Camera Shelf (8 inch), the PAC138 ClickConnect Padlock for security, and the FCA112 Fusion® Secure CPU/Media Player Adapter.
