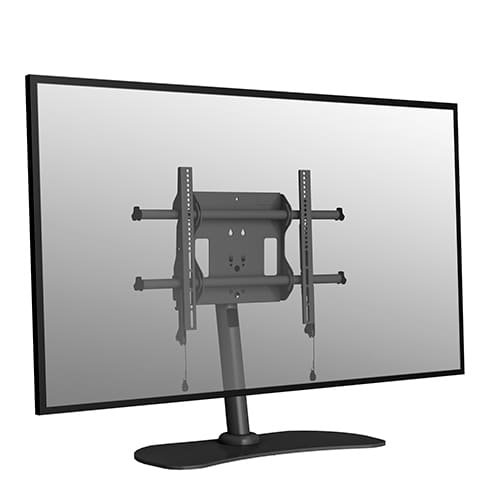

Large Fusion® Flat Panel Table Stand
Free standing table stand for 46"-70" displays, 125 lbs capacity, featuring manual swivel and cable management
The Chief LDS1U is a free standing table stand within the Fusion® Table Stands series, engineered to provide a secure and professional presentation surface for large-format displays in hospitality and commercial environments. Designed to accommodate screens from 46" to 70" (1168 to 1778 mm), this stand supports a weight capacity of 125 lbs (56.7 kg). It features a wide, in-column cable management channel to route and conceal wires for a clean, professional finish. The display can be manually adjusted via a smooth swivel mechanism, and users can prevent collisions with furniture or walls by setting rotation limits at either +/- 15° or 30°. To ensure stability and precision, the mount includes set screw locking to prevent the display from sliding off-center. This TAA compliant and UL listed solution utilizes a universal interface designed to provide everything needed for installation in a single SKU. The VESA mounting pattern range spans from 100 x 100mm to 642 x 400mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Height Range | 22" - 38" (56 - 96.5cm) |
| Shipping Dimensions | 33.5" x 16.75" x 5.63" (850.9 x 425.5 x 143.1 mm) |
| Shipping Weight | 55.75 lbs (25.3 kg) |
| Typical Screen Size | 46" - 70" (1168mm - 1778mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Swivel |
| Color | Black |
| Mounting Method | Free Standing |
All other specifications 5
| Orientation | Landscape |
| TAA Compliant | Yes |
| UPC | 841872171616 |
| VESA Mounting Pattern | 100 x 100mm - 642 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
FCA112 Fusion® Secure CPU/Media Player Adapter
FCA112$111.20
FCA110 Fusion® CAT5/Surge/CPU Adapter
FCA110$27.20
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® Low-Profile Above/Below Shelf for Large Displays
FCA803$140.00
Verified fitment
Questions about this part
Will this Chief LDS1U stand fit my display?
The LDS1U is verified against 11,988 display models from 321 manufacturers. It supports displays 46"-70" with a VESA pattern of 100 x 100mm to 642 x 400mm, including models from Samsung, Sony, LG, Philips, Panasonic, and Sharp.
What is the height adjustment range for the LDS1U?
This table stand provides an equipment height range of 22" - 38" (56 - 96.5cm) to accommodate various viewing needs.
What accessories are compatible with this stand?
You can enhance the setup with accessories such as the FCA112 Fusion® Secure CPU/Media Player Adapter, the FCA801 Fusion® 14 Inch Above/Below Shelf, or the FCA830 Center Channel Speaker.
How do I manage cables with this mount?
The LDS1U features a wide, in-column channel designed to easily route and conceal cables for a clean, professional appearance.
What is the difference between this and the bolt-down version?
The LDS1U is a free standing mounting solution, whereas the series also includes bolt-down versions for permanent, fixed installations.
