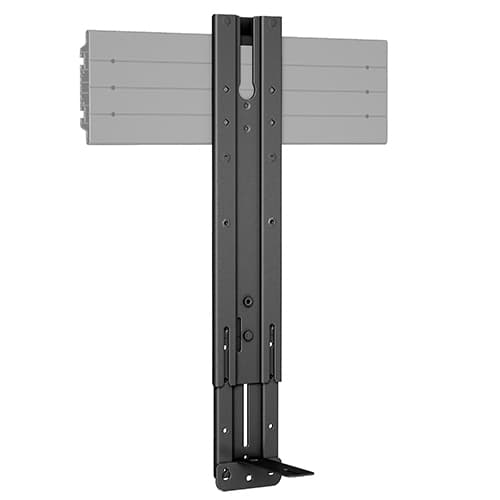

Fusion® Low-Profile Above/Below Shelf for Large Displays
Low-profile shelf for AV components or video conferencing cameras, height adjustable for 37-70" displays
The Chief FCA803 is a low-profile shelf designed to hold AV components or video conferencing equipment directly above or below a large display. This accessory is compatible with all Fusion Series mounts, making it a versatile addition to existing setups. The shelf features an integrated lip on the end to prevent components from sliding off during use. It is designed to support small-format web cameras, such as the Logitech C930e, and other lightweight equipment. For installers, the unit is height adjustable, offering a height extension range of 12.9" to 19.2" (327 to 487 mm) from the center of the TV to the shelf. This adjustability makes it suitable for mounting alongside displays ranging from 37" to 70".
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.6 in (19.3 cm) |
| Height | 26 in (66 cm) |
| Overall Dimensions | 26" x 4" x 7.6" (661 x 101 x 194 mm) |
| Shipping Weight | 5.25 lbs (2.4 kg) |
| Typical Screen Size | Large |
| Weight Capacity | 2 lbs (0.9 kg) |
| Width | 1.5 in (3.8 cm) |
| Accessory Type | Camera ShelvesComponent Shelves |
All other specifications 6
| Adjustability | Height Adjustable |
| Application | Above/Below |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872172729 |
Resources
You'll need these with it
Questions about this part
Will the FCA803 fit my Fusion Series mount?
Yes, the FCA803 is compatible with all Chief Fusion Series mounts.
What is the maximum weight capacity for this shelf?
The FCA803 has a weight capacity of 2 lbs (0.9 kg).
Can I use this to mount a Logitech web camera?
Yes, this shelf is designed to support small-format web cameras such as the Logitech C930e.
How much can I adjust the height of the shelf?
The shelf is height adjustable, providing an extension range of 12.9" to 19.2" (327 to 487 mm) from the center of the TV.
Is the FCA803 TAA compliant?
No, the FCA803 is not TAA compliant.
