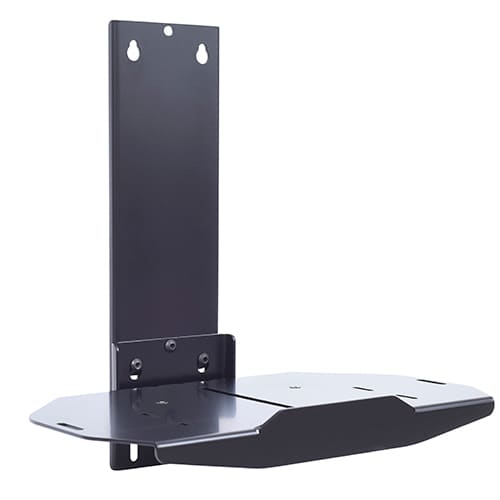

Fusion® Stackable Component Shelf
Stackable component shelf for Fusion® flat panel mounts, providing 10 lbs weight capacity for media components
The FCA870 is a Fusion® Component Shelf designed to add an additional layer of storage to any flat panel installation. This black, stackable shelf is compatible with all Fusion® flat panel mount solutions, including wall, ceiling, cart, and stand configurations. It is specifically designed for use with any new Fusion® fixed or tilt wall mount. As this is the bottom shelf only, it can be connected to the bottom of any FCA8XX series shelf accessory or center speaker mount to facilitate stacking multiple components. When used between shelves, it provides an equipment height range of 10.1-13.1in, while when used with a center speaker mount, it provides a height range of 7.3-10.3in. This TAA compliant accessory supports a weight capacity of 10 lbs (4.5 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 9.03 in (22.9 cm) |
| Height | 16.13 in (41 cm) |
| Overall Dimensions | 16.13" x 14" x 9.03" (409 x 355 x 229 mm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Typical Screen Size | N/A |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14 in (35.6 cm) |
| Accessory Type | Component Shelves |
All other specifications 5
| Application | Stackable |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872164465 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is required to complete a stacked component shelf assembly?
The FCA870 is the bottom shelf only. To create a multi-shelf stack, you must also order the FCA800, FCA801, FCA802, FCA810, FCA811, FCA812, FCA830, or FCA840 separately.
What is the vertical clearance between shelves when using the FCA870?
When installed between two shelves, the equipment height range is 10.1-13.1in. If using it with a center speaker mount, the range is 7.3-10.3in.
